Air DryerDessiccant Type
Mini desiccant air dryer Heatless desiccant air dryer

    A Desiccant Air Dryer doing the desiccative by mechanical principles, it's possible to secure the dew point of -40℃ under the pressure using the chemical desiccative compared to Refrigerant Dryer which is impossible the low dew points.
    It's absolutely essential equipment for Semi-conductor manufactiring line caused severe problems as a small vapour.

  1. Structure and features
    • Adoption aquamatic valve
    • Available the pressure dew point from -40℃ to-73.3℃
    • Graphic panel builtin micro processor
    • Attached the Relief Valve to the tank for User's safety
    • Using the Wika Gauge made in Germany having reliable and no error
    • Using the Activated Alumina Plus Refrigerant of high quality
  2. Application Areas
    • Semi-conductor, Electronic Industry, Pharmacy Industry, Special Painting, Air Supply Instrumentation, Petrochemical Industry, Air-Liquefaction Seperation,Powder & Liquid mixing,Food Industry
  3. Technical details
    • Exploded diagram
    • Diagram of air and refrigerant gas flows

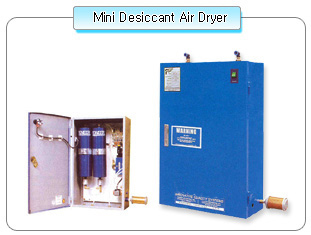

    Mini desiccant air dryer


Model Inlet Capacity¹ in SCFM/NM³HR @ ℉/℃ PDP Dimensions(ins/mm) inlet outlet ins.NPT Approximate Weight (Ibs/kgs)
-100/-73 -40/-40 20/-7 W D H Desiccant² Shipping
SHL-5
SHL-10
SHL-15
SHL-20
3/5
6/10
9/15
12/20
5/9
10/17
15/25
20/34
8/14
15/25
20/34
30/51
12/305
12/305
20/508
20/508
6.5/165
6.5/165
6.5/165
9/229
20/508
20/508
20/508
24/610
1/4"
1/4"
3/8"
1/2"
5/2.3
7/3.2
15/6.8
24/11
50/23
60/27
80/36
100/46

    ※ NOTE

  • At 100℉/37.8℃, 100PSIG/6.9 BAR G inlet
  • Desiccant is factory filled
  • -40℉/-40℃ PDP is standard;notifi factory for required PDP
  • Standard voltage 220/1/60;non-standard available
  • Cycle time 5 or 10 minutes
  • Models SHL5 Through 20 are wall mountP
  • NEMA 1 electrical
  • Maximum pressure 150 PSIG/10.35 BAR G

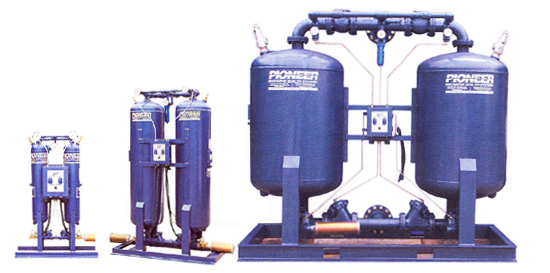

    Heatless desiccant air dryer


Model Inlet Capacity¹ in SCFM/NM³HR@-40 ℉/-40℃ PDP Dimensions(ins/mm) Air inlet Approximate Weight(Ibs/kgs)
W D H Desiccant² Shipping
PHL-25
PHL-35
PHL-50
PHL-75
25/43
35/60
50/85
75/128
33/840
33/840
33/840
33/840
12/308
12/308
12/308
12/308
38/972
47/1206
59/1511
80/2044
1/2"NPT
3/4"NPT
3/4"NPT
3/4"NPT
28/13
39/18
55/25
83/38
225/102
270/123
300/136
350/159
PHL-100
PHL-125
PHL-150
PHL-175
100/170
125/212.5
150/255
175/297
45/1150
45/1150
45/1150
45/1150
19/487
19/487
19/487
19/487
69/1753
69/1753
69/1753
69/1760
1"NPT
1"NPT
1"NPT
11/2"NPT
110/50
125/57
138/63
165/75
500/227
572/260
600/272
626/284
PHL-200
PHL-250
PHL-350
PHL-500
200/340
250/425
350/595
500/850
45/1150
50/1270
50/1270
55/1400
19/487
22/553
23/592
25/644
69/1760
67/1702
71/1792
79/1996
11/2"NPT
11/2"NPT
11/2"NPT
2"PT
193/87
275/124
385/174
550/248
675/306
900/405
1050/473
1450/653
PHL-650
PHL-800
PHL-1000
PHL-1200
650/1105
800/1360
1000/1700
1200/2040
55/1400
83/2095
83/2095
83/2095
27/697
35/891
35/891
35/891
84/2126
90/2291
90/2291
90/2291
2"PT
3"NPT
3"NPT
3"NPT
715/322
880/397
1100/496
1320/595
1600/720
2000/900
2500/1125
2900/1305
PHL-1400
PHL-1600
PHL-1800
PHL-2000
1400/2380
1600/2720
1800/3060
2000/3400
97/2464
97/2464
97/2464
97/2464
40/1016
40/1016
40/1016
40/1016
102/2591
102/2591
102/2591
102/2591
3"NPT
4"NPT
4"NPT
4"NPT
1540/694
1760/798
1900/862
2200/998
3500/1575
3900/1755
4400/1980
4900/2205
PHL-2250
PHL-2500
PHL-2750
PHL-3000
2250/3825
2500/4250
2750/4675
3000/5100
102/2591
102/2591
102/2591
102/2591
47/1206
47/1206
47/1206
47/1206
88/2245
88/2245
88/2245
120/3048
4"NPT
4"NPT
4"NPT
6"NPT
2475/1123
2750/1248
3000/1361
3300/1497
5500/2475
6000/2700
6600/2970
7200/3240
PHL-3500
PHL-4000
3500/5950
4000/6800
140/3556
140/3556
72/1829
72/1829
120/3048
120/3048
6"NPT
6"NPT
3850/1747
4400/1996
8500/3825
9800/4410

    ※ NOTE

  • At 100℉/37.8℃, 100PSIG/6.9 BAR G inlet
  • Desiccant is factory filled through PHL 1200;shipped separately in larger sizes
  • -40℉/-40℃ PDP is standard;-100℉/-73.3℃ PDP is available
  • Standard voltage 220/1/60;non-standard available
  • Cycle time 5 or 10 minutes
  • Models SHL5 Through 20 are wall mountP
  • NEMA 1 electrical
  • Max. operating pressure 150 PSIG/10.35 BAR G. Higher pressure available
