Air Line Equipment Directional Control Valve
SMV SMVF SFVM SHV

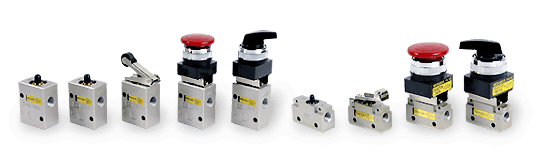

    SMV

    -Mechanical Valve


Series Type of actuator Port size Large image Structure Dimension(mm)
SMV100 Series Standard 01 Rc(PT) 1/8"
Roller lever
Push button
Selector
SMV200 Series Standard 02 Rc(PT) 1/4"
Roller lever
Push button
Selector
  1. Symbol

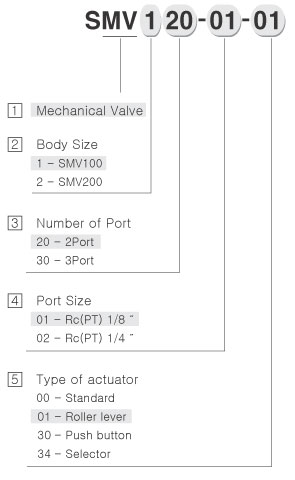

  2. How to Order

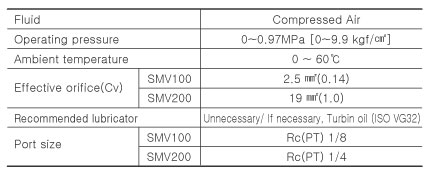

  3. Spacification
  4. Operating Point of Mechenical Valve
    • P.T : Working distance from the free position to the operatingposition of the actuator
    • O.T : Working distance from the operating position to the operating limit of the actuator
    • T.T : Working distance from the free position to the operating limit of the actuator.

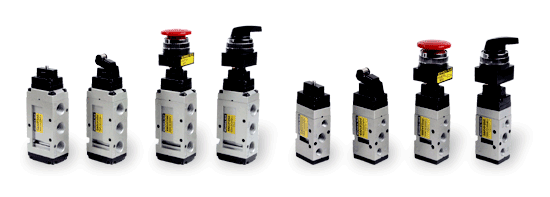

    SMVF

    -Pilot Type Mechanical Valve


Series Type of actuator Port size Large image Structure Dimension(mm)
SMVF250 Series Standard 02 Rc(PT) 1/4"
Roller lever
Push button
Selector
SMVF350 Series Standard 03 Rc(PT) 3/8"
Roller lever
Push button
Selector
  1. Symbol

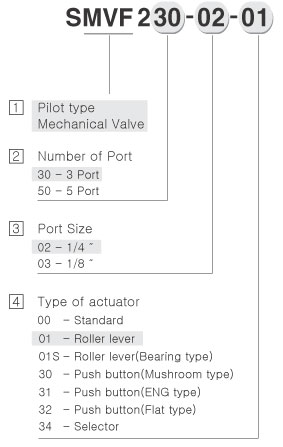

  2. How to Order

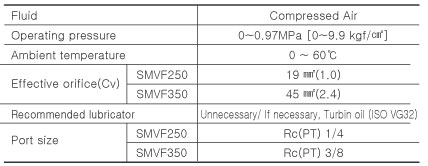

  3. Spacification
  4. Operating Point of Mechenical Valve
    • P.T : Working distance from the free position to the operatingposition of the actuator
    • O.T : Working distance from the operating position to the operating limit of the actuator
    • T.T : Working distance from the free position to the operating limit of the actuator.

    SFVM

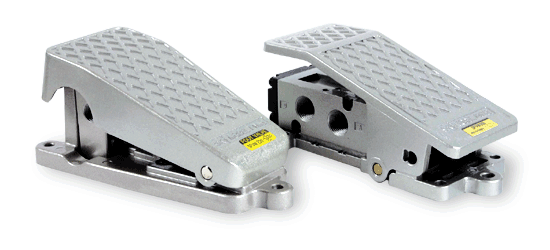

    -Foot Valve


Model Port size Large image Number of Port Dimension(mm)
SFVM200

 02 Rc(PT) 1/4" 2 Port / 3 Port
SFVM250 02 Rc(PT) 1/4" 5 Port
03 Rc(PT) 3/8"

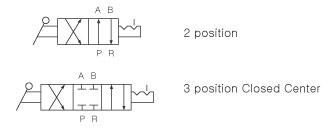

  1. Symbol
  2. How to Order
  3. Spacification

    SHV

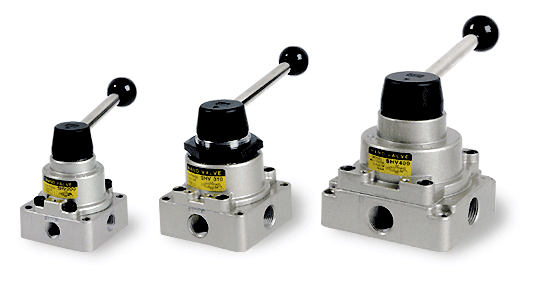

    -Hand Valve


Model Port size Large image Dimension(mm)

SHV200

 02 Rc(PT) 1/4"
SHV300 03 Rc(PT) 3/8"
SHV400 04 Rc(PT) 1/2"
06 Rc(PT) 3/4"

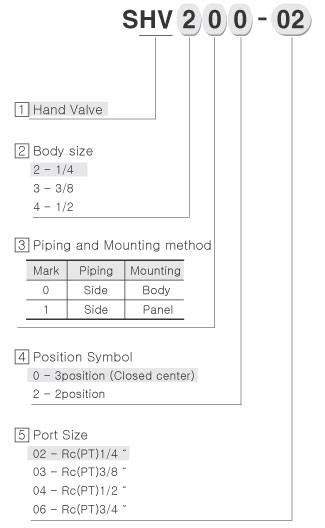

  1. Symbol
  2. How to Order

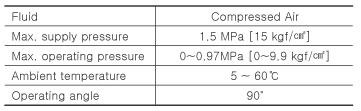

  3. Spacification
