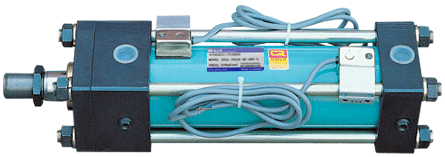

Basic hydraulic cylinderHYD - CYLINDER 70/140kgf/㎠

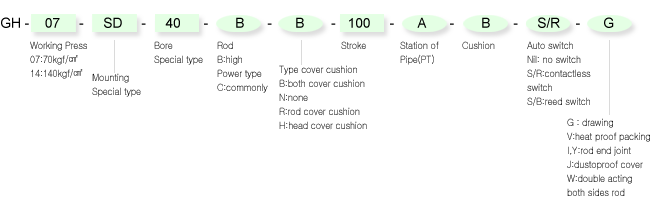

Basic hydraulic cylinder GH SERIES Specifications Type 70kgf/㎠ 140kgf/㎠ Bore ∮40,∮50,∮63,∮80,∮100,∮125,∮140,∮150,∮160,∮180,∮200,∮250 Max. working Press. 70kgf/㎠ 140kgf/㎠ Allow press. 105kgf/㎠ 210kgf/㎠ Min. working Press. 3~8kgf/㎠ Range of speed 10~300mm/sec (Except cushion part) Working temp. -10℃~+80℃(100℃) VITON (use VITON above 100℃) Apply working oil Commonly mineral oil Screw tolerance of rod KSB02142   Stroke tolerance Appearance color Bore : 5.7BG/5.2/3.5? Cover and type : black Supporting type Standard SD,LA(LB),(FA),(FB),FC,FD,TA,TC,CA,CB Double Acting both sided rod SD,LA,(LB),(FA),(FB),FC,FD,TA,TC Other accessories Dustproof cover Standard : nylon- special : duprene rubber(heat proof) Connection of rod end I type, Y type other Locknut ※ NOTE In mounting type ( )is for 70kgf/㎠. If the Temp. is above 100℃ with long time and high speed working, please inquire us. Length of cushion [unit : mm] Bore ∮40 ~ ∮63 ∮80 ~ ∮160 ∮180 ~ ∮200 ∮250 Length of cushion 20 25 30 35 Range of stroke [unit : mm] Bore ∮ 40 ~ ∮50 ∮63 ~ ∮80 ∮100 ∮125 ~ ∮250 Range of stroke 1200 1600 2000 2000 70kgf/㎠ ST- 1500 : tie rod with screw ST - 15000 : tube flange type 140kgf/㎠ ST - 800 : tie rod with screw ST - 8000 : tube flange type ※ NOTE The graph of these type needed else account If the length of stroke exceeds the above, please inquire us. ∮180 ~ ∮250 (refer to left list) How to order Working oil and apply packing Material of packing Working oil NBR URETHANE VITON Commonly mineral oil ○ ○ ○ Water - glycol ○ X ○ W/O working oil ○ ○ ○ O/W working oil ○ ○ ○ Phosphate ester X X ○ Polyol ester △ △ △ ※ ○,△ can use X not allow use
