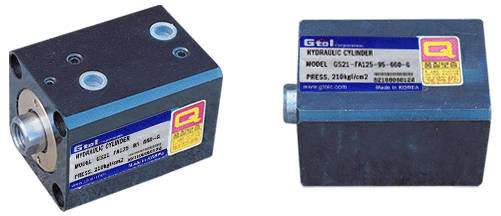

Compact hydraulic cylinder

Compact hydraulic cylinder

Compact hydraulic cylinder

Specifications

Type	Double acting	Double acting both sided rod
Bore	∮32, ∮40, ∮50, ∮63, ∮80, ∮100, (∮125)	∮32, ∮40, ∮50, ∮60, ∮80, ∮100, (∮125)
Max. working Press.	140kgf/㎠ (13.729MPa)
Allowable press	210kgf/㎠ (20.594MPa)
Min. working Press	3 ~ 8kgf/㎠
Range of speed	8 ~ 100mm/sec
Working temp	~10 ~ +80℃
Apply working oil	Commonly mineral oil
Screw tolerance of rod	KSB0214 2
Stroke tolerance	0 ~ +0.8mm
Supporting type	Basica type

※ Using press. Over 140kgf/㎠, please inquire us ※ With switch can order (please inquire us)
※ Using TEMP. over 100, please inquire us ※ With switch type, the dimension of R will changer

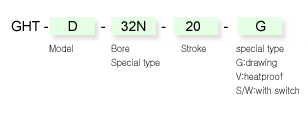

How to order

Model

D : commonly
T : double acting both sides rod
M : screw type
S/W : switch type(SO type,DC24V/AC100V)

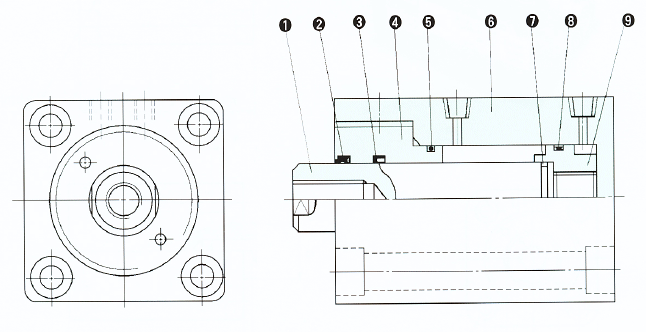

GHTD inside construction

List of parts

No	Name	material	Amount
1	Piston rod	Machine carbon steel	1
4	Bush	Bronze caster	1
6	Bore	Machine carbon steel	1
9	piston	Bronze caster	1

List of packing

	2	3	5	7	8
	URETHANE or NBR	URETHANE or NBR	NBR	NBR	NBR+URETHANE
	Dirt wiper	U - packing	Cover O-ring	Rod O-ring	Piston packing
	1	1	1	1	1SET
∮ 32	MDSI 18	MUNI 18	G25	P14	MSPGI 32
∮ 40	MDSI 22.4	MUNI 22.4	G35	P18	MSPGI 40
∮ 50	MDSI 28	MUNI 28	G45	P22	MSPGI 50
∮ 63	MDSI 35	MUNI 35	G55	G30	MSPGI 63
∮ 80	MDSI 45	MUNI 45	G75	G40	MSPGI 80
∮ 100	MDSI 45	MUNI 45	G95	G40	MSPGI 100
∮ 125	★SDR 55	★SKY 55	G120	G50	MSPGI 125
