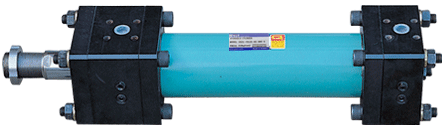

Hydraulic cylinder for smelt equipment
HYD - CYLINDER 70/140kgf/㎠ HYD - CYLINDER 210kgf/㎠

    HYD - CYLINDER 70/140kgf/㎠



  1. Specifications

    ※ NOTE

  1. Max. working press in the Max date of the press as using continum.
  2. Min. working speed do not include cushion part.
  1. Length of cushion
[unit : mm]

    Not : allow cushion at follow

  1. A type rod : ∮40, ∮50, ∮63 at rod side
  2. B type rod : ∮40 at rod side
  1. Range of stroke

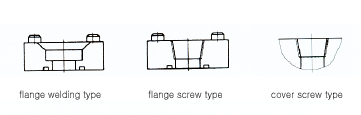

▷ Mounting type except TC

[unit : mm]

▷ TC type

[unit : mm]

    Note : other stroke can do also(please inquire us)

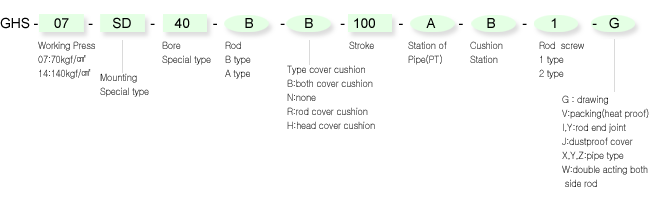

  1. How to order
  1. Standard product parking is urethane or NBR.

  2. Station of line, cushion valve port and air port show as follow:ⓐ, ⓑ, ⓒ, ⓓ (rod side view)



  3. PT : A, cushion :B,
    If you need special, please use above drawing
  4. Not allow use cushion at follow case :


  5. A type rod : ∮40, ∮50, ∮63 rod side
    B type rod : ∮40 rod side

  6. Type marker of rod end screw and pipe

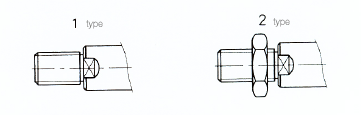

  7. ▷Rod end screw type

    ※ The rod end screw of 2type is longer than type and with locknut
    ※ If no special request, please do as 1 type



    ▷Pipe type

    ※ If no special request, please do as X type
  1. Working oil and apply packing

    ※ ○,△ can use X not allow use
