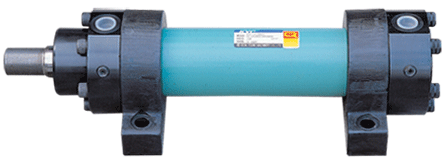

Hydraulic cylinder for smelt equipment

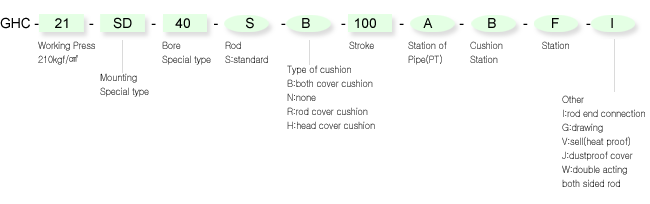

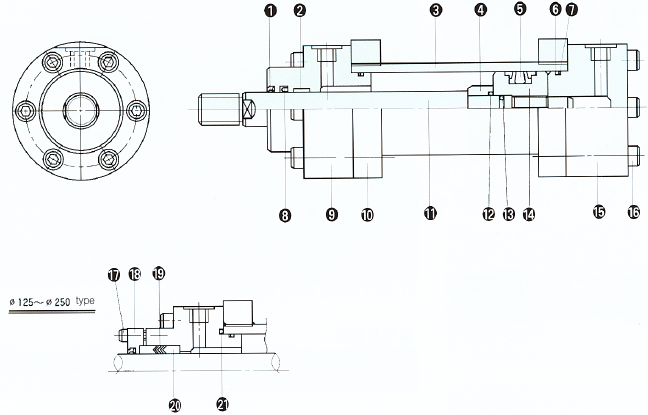

HYD - CYLINDER 70/140kgf/㎠ HYD - CYLINDER 210kgf/㎠ HYD - CYLINDER 210kgf/㎠ Specifications Type 210kgf/㎠ Bore ∮40,∮50,∮63,∮80,∮100,∮125,∮140,∮150,∮160,∮180,∮200,∮250 Max. working Press 210kgf/㎠ Allowable press 315kgf/㎠ Min. working Press 12~18kgf/㎠ Range of speed 10~300mm/sec(Except cushion part) Working temp -10℃ ~ +80℃ Apply working oil Commonly mineral oil Screw tolerance of rod KSB0214 2   Stroke tolerance Appearance color Bore : 7.6B/5.6/5.0   Cover and type : black Supporting type Standard LA, FA, FB, CA, TC Double acting both sided rod LA, FA, TC Other accessories Dustproof cover Standard : nylon-Special : duprene rubber (heat proof) Connection of rod end I type ※ NOTE If the Temp. is above 100℃, long time working, high speed, please inquire us. Length of cushion [unit : mm] Bore ∮40 ~ ∮63 ∮80 ~ ∮160 ∮180 ~ ∮260 ∮250 Length of cushion 20 25 30 35 Range of stroke [unit : mm] Bore ∮40 ~ ∮63 ∮63 ~ ∮60 ∮100 ~ ∮160 Range if stroke 1200 1600 2000 ※ NOTE The graph of these type needed account else. If the length of stroke is exceed of stroke is exceed above, please inquire us. How to order Working oil and apply packing Material of seal Working oil NBR URETHANE VITON Commonly mineral oil ○ ○ ○ Water - glycol ○ X ○ W/O Working oil ○ ○ ○ O/W Working oil ○ ○ ○ Phosphateester X X ○ Polyolester △ △ △ ※ ○,△ can use X not allow use GHC inside construction List of parts No Name Material Amount 2 Bore Outsourcing 1 3 Reaction-ring Machine carbon steel 1 4 Cushion packing Bronze caster 1 9 Rod cover Machine carbon steel 1 10 Flange Commonly steel 2 11 Piston rod Machine carbon steel 1 No Name Material Amount 14 Piston Machine carbon steel 1 15 Head cover Machine carbon steel 1 16 Bolt Outsourcing 12 17 Bolt Outsourcing 6 18 Flange Commonly steel 1 20 Bush Bronze caster 1 List of packing No. 1 5 6 7 8 12 13 19 21 Name Dirt-wiper Piston packing Cover O-ring Backup ring U-packing O-ring Rod O-ring V-packing Cover O-ring Material URETHANE NBR+TEFLON NBR TEFLON URETHANE NBR NBR NBR,FABRIC NBR Amount Bore 1 1SET 2 2 1 1 1 5 2 ∮40 SDR-20 L43,40-30 G35 G35 SKY-20 P16 P12 - - ∮50 PU6-28 L43,50-34 G45 G45 NI300-28 P24 P20 - - ∮63 PU6-35 L43,63-47 G55 G55 NI300-35 G30 G25 - - ∮80 PU6-45 L43,80-60 G75 G75 NI300-45 G40 G35 - - ∮100 PU6-55 L43,100-75 G95 G95 NI300-55 G50 G45 - - ∮125 PU6-70 L43,125-100 G120 G120 - G60 G55 ∮70x ∮90x5 G125 ∮140 PU6-90 L43,140-115 G135 G135 - G70 G65 ∮90x ∮110x5 G140 ∮150 PU6-90 L43,150-128 G145 G145 - G70 G65 ∮90x ∮110x5 G150 ∮160 PU6-100 L43,160-130 G150 G150 - G75 G70 ∮100x ∮120x5 G160 ∮180 SDR-110 L43,180-155 G170 G170 - G80 G75 ∮110x ∮130x5 G180 ∮200 SDR-125 L43,200-175 G190 G190 - G100 G95 ∮125x ∮150x6 G200 ∮250 SDR-160 L26,250-225 G240 G240 - G120 G115 ∮160x ∮185x6 G250
