High Pressure hydraulic cylinder

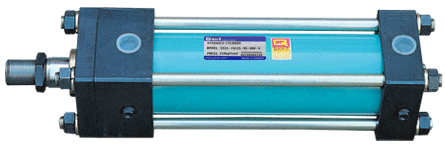

High Pressure hydraulic cylinder

GH SERIES

Specifications

Type		210kgf/㎠
Bore		∮40,∮50,∮63,∮80,∮100,∮125,∮140,∮150,∮160
Max. working Press		210kgf/㎠
Allow press		315kgf/㎠
Min. working Press		3~8kgf/㎠
Range of speed		10~300mm/sec (Except cushion part)
Working temp.		-10℃~+80℃(100℃) VITON (use VITON above 100℃)
Apply working oil		Commonly mineral oil
Screw tolerance of rod		KSB02142
Stroke tolerance		100mm bellow^+0.8₀101~250 ⁺^1.0₀251~650 ^+1.25₀ 651~1000mm ^+1.4₀1001~1500 ^+1.6₀1501~2000 ^+1.8₀
Appearance color		Bore : 7.6BG/5.6/5.0? Cover and type : black
Supporting type	Standard	SD, LA, FA, FB, CA, TC
Supporting type	Double Acting both sided rod	SD, LA, FA
Other accessories	Dustproof cover	Standard : nylon- special : duprene rubber(heat proof)
	Connection of rod end	I type, Y type
	other	Locknut

※ NOTE

In mounting type ( )is for 70kgf/㎠.
If the Temp. is above 100℃ with long time and high speed working, please inquire us.

Length of cushion

[unit : mm]

Range of stroke

[unit : mm]

※ NOTE

The graph of these type needed else account
If the length of stroke exceeds the above, please inquire us.
If the stroke is above 801mm at range of ∮140 ~ ∮160, the bore material is tube flange. (please inquire us)

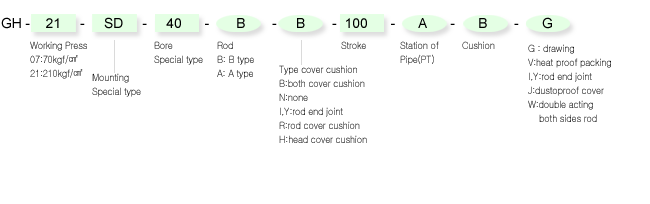

How to order

Working oil and apply packing

Material of packing Working oil	NBR	URETHANE	VITON
Commonly mineral oil	○	○	○
Water -glycol	○	X	○
W/O working oil	○	○	○
O/W working oil	○	○	○
Phosphate ester	X	X	○
Polyol ester	△	△	△

※ ○,△ can use X not allow use
