Manifold Block

Manifold Block

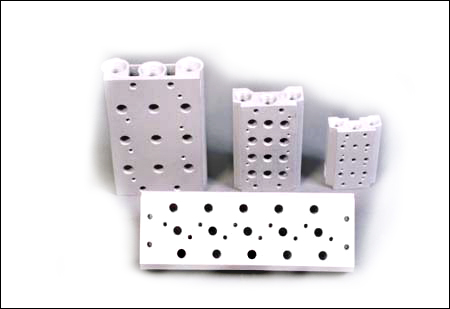

Product Features

With solenoid valve, manifold blocks facilitate compact design and manufacture of the complicated air piping.

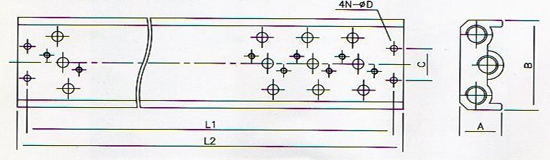

Model	A	B	C	øD	L1	L2	Applicable Valve(Manufacturer)
Model	A	B	C	øD	L1	L2	Sin Young	CKD	SMC	Others
SMB-520	20	44	15	3.4	16N + 8	16N + 18	SV-51	4KA-110	VZ-3120
SMB-110	24	58	21	4.3	19N + 9	19N + 21	SV-110	4KA-210	VZ-5120	DSM2-2120
SMB-210	26	62	22	4.3	28N + 16	28N + 28	SV-210		VF-3130
SMB-310	30	83	30	5.3	33N + 14	33N + 27	SV-310		VF-5120
SMK-310	30	74	26	5.3	24N + 12	24N + 24		4KA-310
SMK-410	30	83	30	5.3	30N + 15	30N + 30		4KA-410
SMZ-1120	25	30	0	3.4	16N + 13	16N + 20			VZ-1120
SMF-1130	25	30	0	3.4	28N + 12	28N + 20			VZ-3120
SMP-342	30	43	35	4.3	28N + 10	28N + 20			VP- 342
SMY-310	20	45	15	3.4	10.5N + 11.5	10.5N + 19.5			SY-3120
SMY-510	24	58	21	4.3	16N + 10	16N + 20			SY-5120
SMY-710	26	64	22	4.3	19N + 10	19N + 21			SY-7120
SMR-2412	24	58	21	4.3	19N + 11	19N + 21				RCS-2412
SMR-2406	26	62	22	4.3	28N + 16	28N + 28				RCS-2406
SMR-2408	30	83	30	5.3	30N + 20	30N + 40				RCS-2408

※ Dimensions are variable according to the order.
