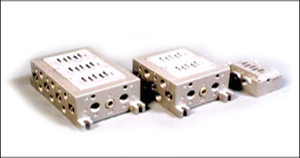

ISO manifold block

ISO manifold block

ISO manifold block

Single Block

Model	Port Size	A	B	C	D	E	F	G	H	I	J	K	L	M
SP7-S-03	3/8	112	15.5	75	98	62	M6*1.0P	50	42	47	10	38	16	23
SP7-S-04	1/2	112	15.5	75	98	62	M6*1.0P	50	42	47	10	38	16	23

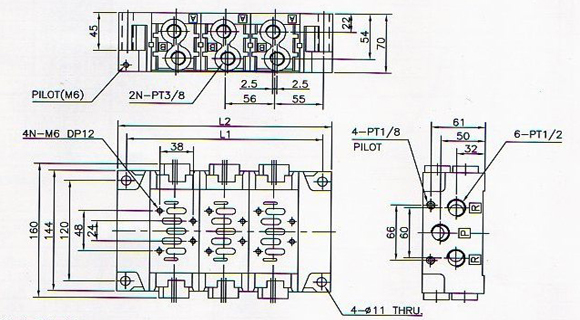

Multiple Blocks

Model	Port Size		1	2	3	4	5	6	7	8	9	10
SP7-D-04	PT1/2	L1	110	166	222	278	334	390	446	502	558	614
SP7-D-04	PT1/2	L2	130	186	242	298	354	410	466	522	578	634
