Home > Pneumatics > Valve > 2 way Valve
Pneumatics
Valve 2 way Valve
VA2 series VD2 series VDM series VDW series VDSL series VM series VPW series VPSL series
VPSH series VPW(SL)-S series VB series VPW(SL)22 series

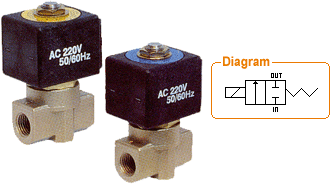

    VD2 series

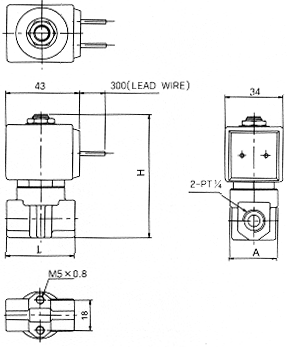

 External Form                            (mm)
¡¡ L

H

A
VD212 40 73 28

  • Direct current with minimum trouble
  • Superior durability
  • LED light
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid
  • You can order for special manufacture

  • Public specification

Working Fluid

Water,Air,Oil (Less than 50cst)

Fluid Temp

-10¡É ~ 60¡É

Atmosphere

-10¡É ~ 60¡É / Less than 90% RH

Coil insulation

standard ; B / Option ; H

Watt

AC 8W / DC 12W

Leakage

0§¦/min

Voltage Fluctuation

¡¾10%

Electrical Connetion

standard ; Lead line/Option ; DIN terminal (PG9)

Conduct

A direct current , Normal cross/Normal open

Material

Body

Brass

sear

NBR / Option ; Viton, EPDM, PTEE

  • Model specification
VD 212
fitting size(PT) 1/4
efrcent area(§±) 1.8 2.7 6.2 10.5
Cv 0.10 0.15 0.30 0.40
orifice size(§®) 1.5 2 3 4
working pressure(§¸/§²) 0 ~ 30 0 ~ 25 0 ~ 15 0 ~ 6
weight(§¸) 0.35
