othersPressure Switch
Single type Dual type Flow Switch

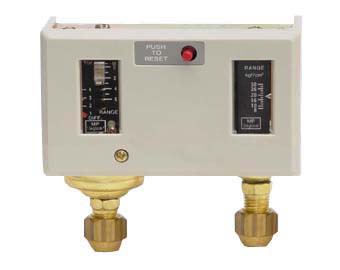

    Dual type



  1. General Description
    • For use with fluorinated refrigerants aas well as with air and water (Allowable Fluid temp: -10 to 120°C)
    • Type GP for universal application
    • Micro-switch ensures reliable switching
    • Mounting Bracket supplied as standard
    • With SPDT contact mechanism
    • Wide applicable range of temperature.
  1. Electrical Function
RATED VOLTAGE(V)
RATED AMPS.(A) 		POWER FACTOR
(COS Ø) 		125/250V
AC
NON-INDUCTIVE CURRENT 1 12
INDUCTIVE
CURRENT 		FULL LOAD 0.75 12
LOCKED ROTER 0.45 72

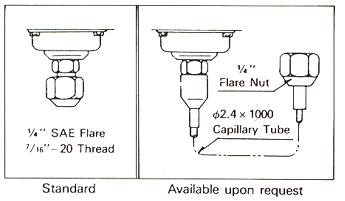

  1. Pressure Connections
  1. Contact Function
  1. Specifications
MODEL NO. RANGE DIFFERENTIAL FACTORY SETTING MAX. BELLOWS
PRESSURE( Kgf/㎠) 		WEIGHT
(Kg)
MIN. MAX. MIN. MAX. ON OFF
GP-306
 Low Side -50cmHg 6 0.6 4 3 2 16.5 0.61
High side 8 30 approx. 4 fixed 16 20 40
GP-306M
 Low Side -50cmHg 6 0.6 4 2 2 16.5
High side 8 30 approx. 4 fixed Manual Reset 20 40
GP-606
 Low Side -50cmHg 6 0.6 4 3 2 16.5
High side 8 30 approx. 4 fixed 16 20 40
GP-606M
 Low Side -50cmHg 6 0.6 4 3 2 16.5
High side 8 30 approx. 4 fixed Manual Reset 20 40

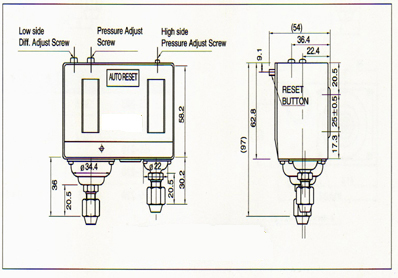

  1. Dimensions
