Home > others > Stopper Cylinder
others
othersStopper Cylinder
Technical data How to Order
blank
Direct Stopper Cylinder Roller Stopper Cylinder Damper Stopper Cylinder
blank
Horizontal type of Cylinder Lift Cylinder Table Cylinder

    GN6000 series-Technical data

  1. Cylinder Specifications
Operating Medium Air
Max. Working Pressure 0.99 MPa
Min Working Pressure 0.15 MPa
Ambient Air Temperature 5~60°
Design Pressure 1.0 MPa
  1. Standard Type
[unit : mm]
Model Tube Dimameter Stroke Action
GN-6003 Ø50, Ø80 30, 40 Double
GN-6021 Ø50, Ø80 30, 40 Single
GN-6045 Ø30, Ø50, Ø80, Ø100 25, 30, 40 Single or Double
  1. Stopper Cylinder Selection

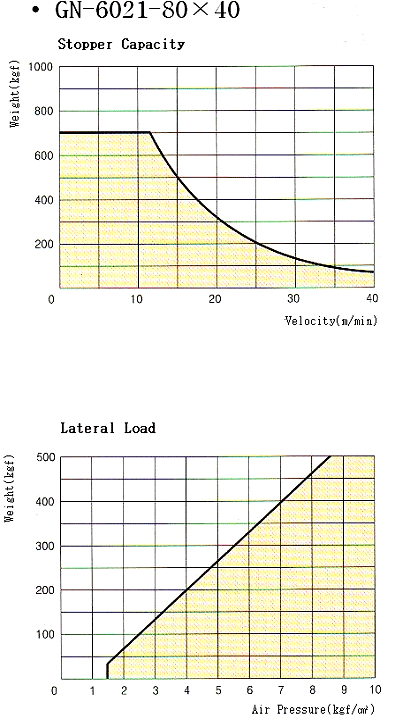

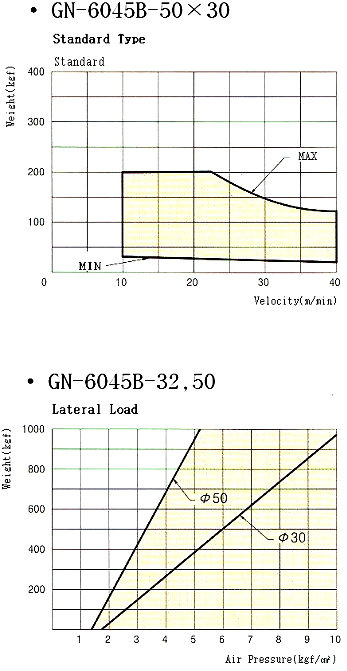

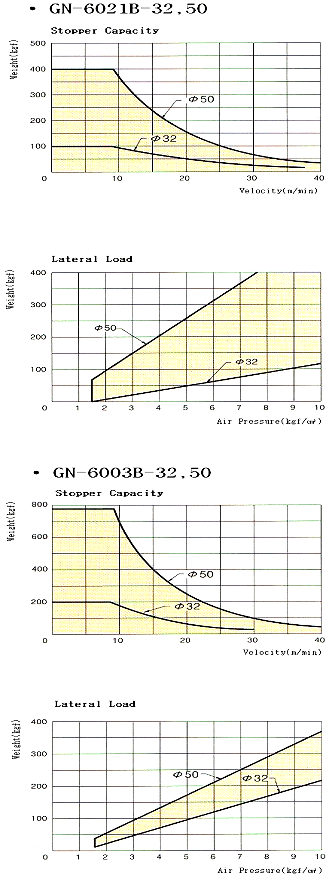

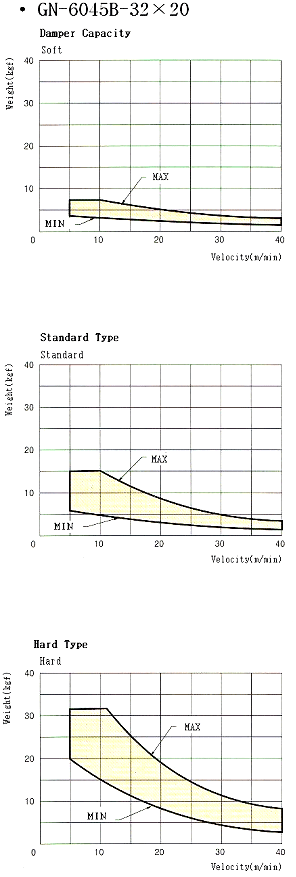

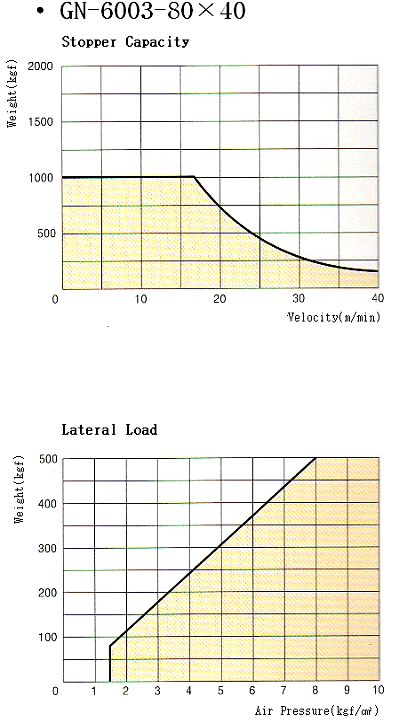

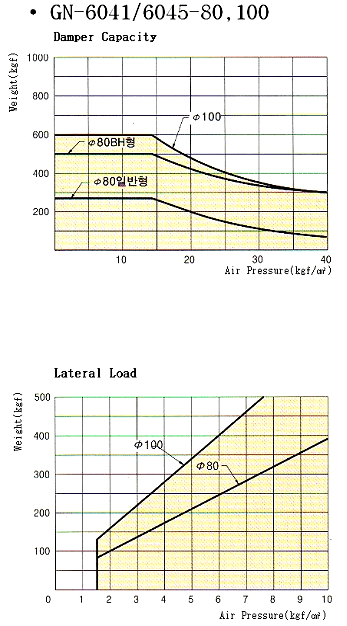

1. Using Graph of the Allowable Damper Capacity, Find The Diameter of Stopper Cylinder.

2. Using Following Equation, Find The Lateral Force. Lateral Force=Weight * Friction Coefficient.

3. Using Graph of The Allowable Lateral Load, Find The Diameter of The Stopper Cylinder Under Rated Air Pressure.

4. From Step 1 and 3, Select Bigger Diameter of Stopper Cylinder.

  1. Example for Model Selection

    Let's use following data in this example.

  • Velocity of pallet : 15m/min
  • Weight(pallet+product) : 200kg
  • CAir pressure : 5kgf/㎠
  • Friction coefficient : 0.1
  1. Using graph of the allowable damper capacity, find the diameter at the intersection of the weight and the velocity. D1 - Ø50H
  2. Find the lateral force. lateral force-weight x friction coefficient = 20kgf
  3. Using graph og the allowable lateral load, find the diameter at the intersection of the lateral force and the air pressure. D2 - Ø32
  4. From step 1 and 3, select bigger diameter. Therefore, selected model is GN-6054B-50H*30


    YSN6046B series-Technical data

  1. Common Specifications
Diameter Ø50
Type Double Acting
Fluid Clean Air
Working Pressure Without Valve 0.15 ~ 0.99 MPa
With Valve 0.15 ~ 0.8 MPa
Design Pressure Without Valve 1.5 MPa
With Valve 1.2 MPa
Ambient Temperature (℃) 5 ~ 50
Cushion Urethane
Lubrication None
Port Size Without Valve Rc(PT)1/8"
With Valve M5
Weight (kg) 9.5

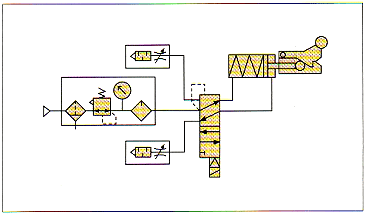

  1. STD Piping Diagram

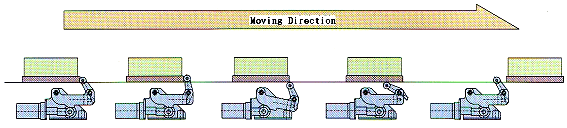

  1. Operation

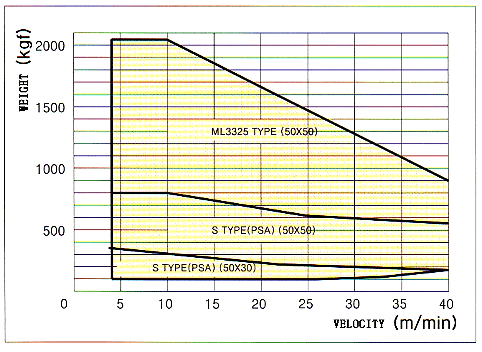

  1. Damper Capacity

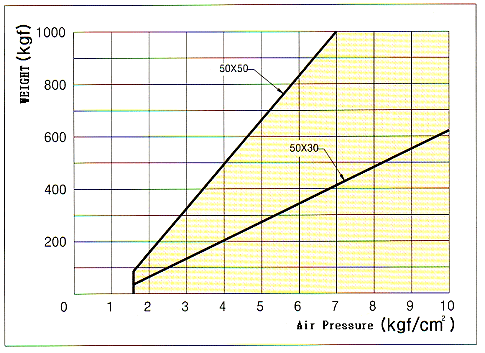

  1. Lateral Load
