Technical data How to Order

Direct Stopper Cylinder Roller Stopper Cylinder Damper Stopper Cylinder

Horizontal type of Cylinder Lift Cylinder Table Cylinder

---



Horizontal type of Cylinder

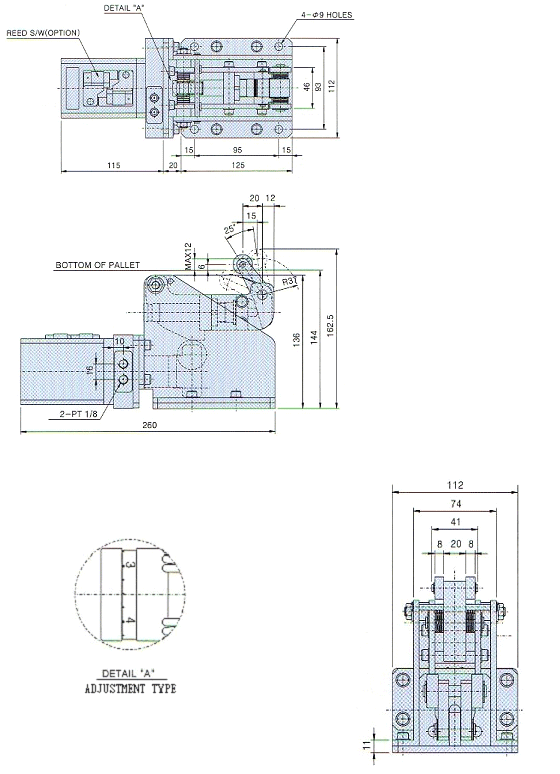

1. GN-6046B-∮50×30

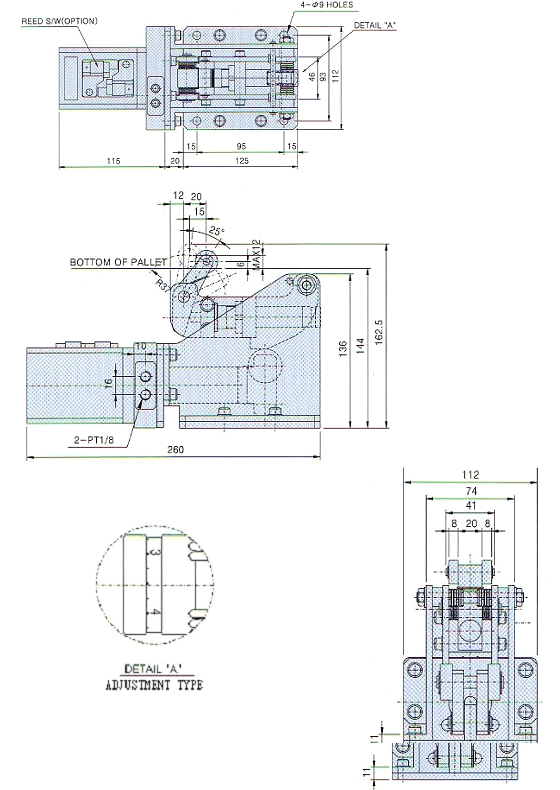

1. GN-6046B-∮50×30(REVERSE DIRECTION)

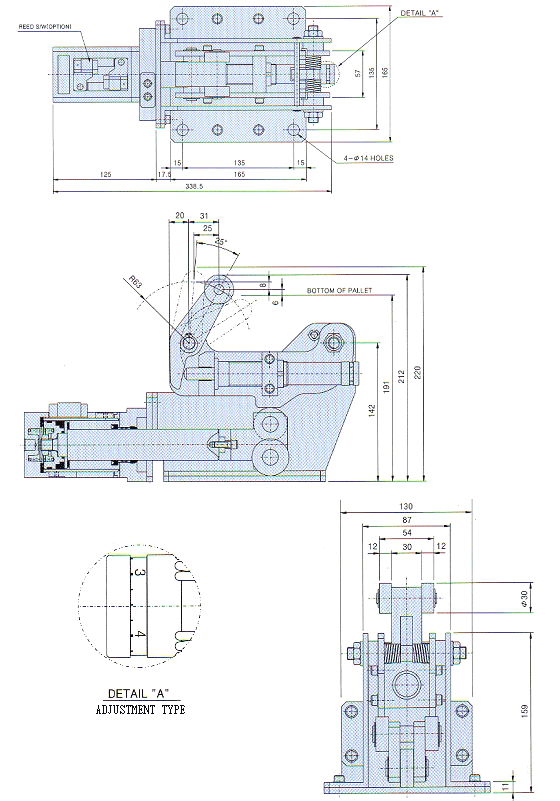

1. GN-6046B-∮50×50

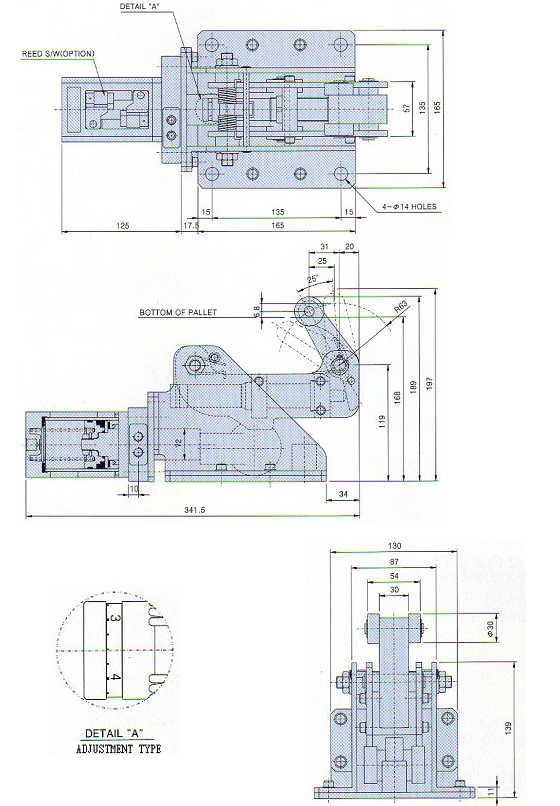

1. GN-6046B-∮50×50(REVERSE DIRECTION)

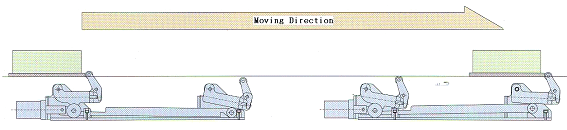

[Operation]

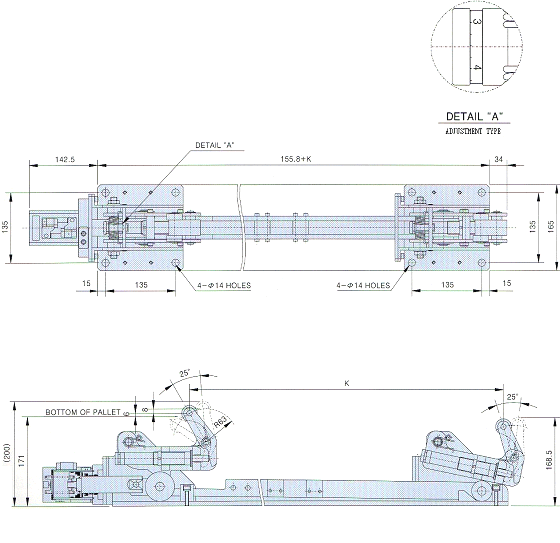

1. GN-6046B-∮50×50(SEESAW TYPE)
