Home > others > Stopper Cylinder
others
othersStopper Cylinder
Technical data How to Order
blank
Direct Stopper Cylinder Roller Stopper Cylinder Damper Stopper Cylinder
blank
Horizontal type of Cylinder Lift Cylinder Table Cylinder

    Lift Cylinder

  1. Theory Output

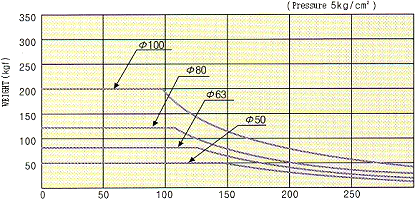

  1. Capacity Eccentricity
Tube  Diameter Water  Pressure Air Pressure(kgf/㎠)
3 4 5 6 7
Ø50 16.5 49.5 66 82.5 99 115.5
Ø63 16.25 78.8 105 131.3 157.5 183.8
Ø80 40.5 121.5 162 202.5 243 283.5
Ø100 66.0 198 264 330 396 462

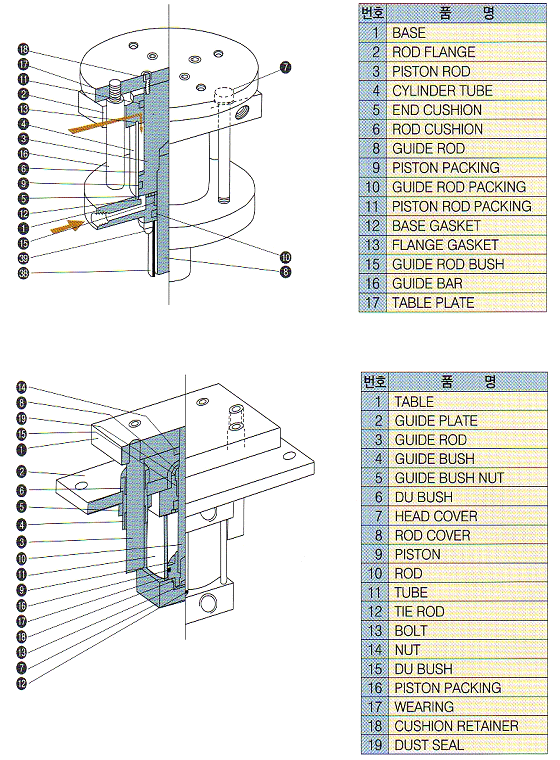

  1. Lift Cylinder

[STD Piping Diagram]

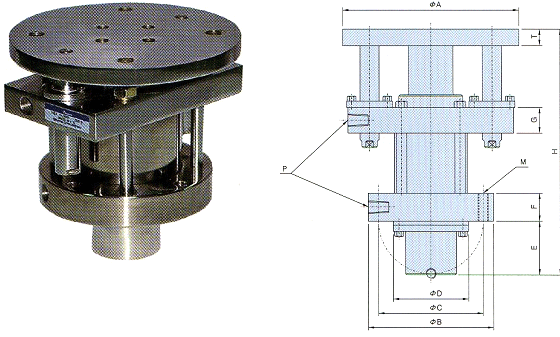

  1. GN-6053

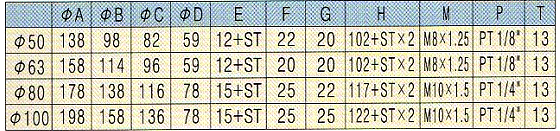

[DIMENSIONS(mm)]

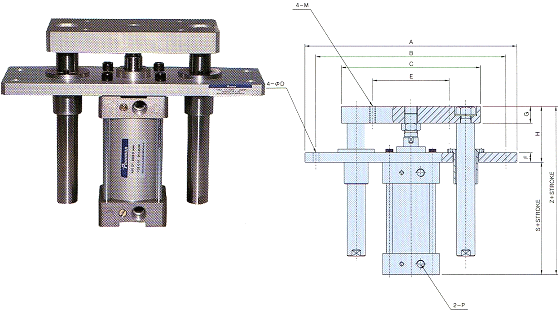

  1. GN-6053B

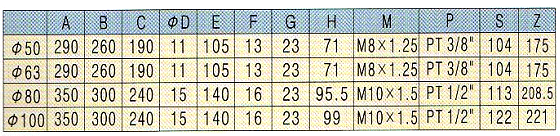

[DIMENSIONS(mm)]
