Home > Pneumatics > Vacuum System
Pneumatics
Vacuum SystemVacuum Ejector
Air-Hydro Converter Vacuum Ejector Air Vibrator Vacuum Filter Exhaust Cleaner
Vacuum Pad(PS-Series) Vacuum Pad(Pss-Series) Vacuum Pad(PY-Series) Vacuum Pad(PYS-Series)

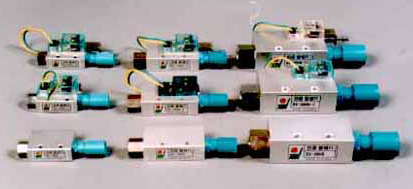

    Vacuum Ejector



  1. Product Features
    • Alternative for vacuum pump, which is large and requires vacuum valve.
    • No operating part for vacuumizing.
    • Small and compact size.
  1. Specifications
Model Port Size
Rc (PT) 		Nozzle Dia. (㎜) Vacuum Switch Vacuum Press. Press. Range
Mpa {kgf/㎠} 		Remark
SV-10HS 1/8" 1.0
Nil 		-690 mmHg 0.1∼0.99 {1∼9.9} Fluid : Clean Air

 Lubrication
: not required

Amb. Temp.
: 0∼60℃
SV-15HS 1/4" 1.5
SV-20HS 3/8" 2.0
SV-10HS-C,CK 1/8" 1.0 C or CK Type
 -690mmHg 0.1∼0.99 {1∼9.9}
SV-15HS-C,CK 1/4" 1.5
SV-20HS-C,CK 3/8" 2.0

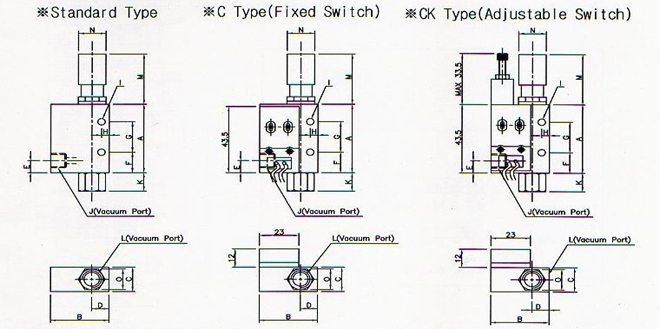

    ※ NOTE

  • C : Fixed Type
  • CK : Adjustable Type
