Vacuum SystemVacuum Pad(PY-Series)

Air-Hydro Converter

Exhaust Cleaner

Vacuum Pad(PS-Series)

Vacuum Pad(Pss-Series)

Vacuum Pad(PY-Series)

Vacuum Pad(PYS-Series)

Vacuum Pad(PY-Series)

Product Features

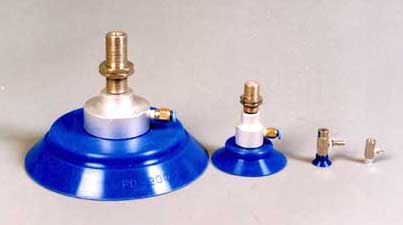

Attract the objects by vacuum pressure.
Materials of pad are black rubber or silicon rubber, urethan rubber according to the objects.

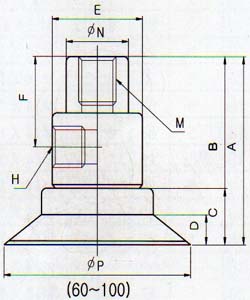

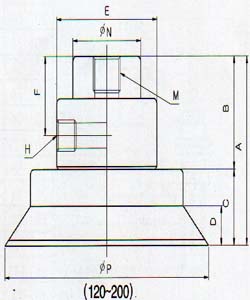

Dimension (Horizontal Fixed Type)

Type	A	B	C	D	E	F	H	L	M	øN	øP
PY-5	22	14	8	1	7H	10	2.6	-	M3 X 0.5	6	2
	22.5	14	8	1	7H	10	2.6	-	M3 X 0.5	6	4
	23	14	9	1	7H	10	2.6	-	M3X0.5	6	6
PY-10	28	19	9	3	9H	12	2.6	15	M4 X 0.7	10	8
PY-10	27	19	8	2	9H	12	2.6	15	M4 X 0.7	10	10
PY-25	35	27	8	4	10H	15	5	21	M5 X 0.8	11	15
	38	27	11	5	10H	15	5	21	M5 X 0.8	11	20
	41	27	14	5	10H	15	5	21	M5 X 0.8	11	25
PY-35	46	32	14	6	11H	21	5	23	M6 X 1.0	13	30
PY-35	46	32	14	7	11H	21	5	23	M6 X 1.0	13	35
PY-50	51	37	14	6.5	13H	25	5	24	M6 X 1.0	14	40
PY-50	51	37	14	7	13H	25	5	24	M6 X 1.0	14	50
PY-80	50	35	15	8	29	25	PT 1/8	-	M12 X 1.25	20	60
PY-80	55	35	20	10	29	25	PT 1/8	-	M12 X 1.25	20	80
PY-100	57	35	22	12	34	25	PT 1/8	-	M12 X 1.25	25	100
PY-150	67	40	27	14	59	28	PT 1/8	-	M16 X 1.5	40	120
PY-150	83	40	43	27	59	28	PT 1/8	-	M16 X 1.5	40	150
PY-200	77	40	37	25	69	33	PT 1/8	-	M16 X 1.5	45	200
