Shock Absorber
Shock AbsorberShock Absorber
KHA series KMA series KMS series Accessories

    Accessories

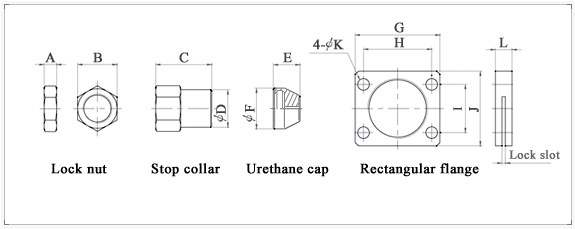

    We have variety accessory series as following for the shock absorber. Urethane cap( to reduce noise) Clevis mount, Foot mount, Rectangular flange, Square flange & Lock nut (to install conveniently.) Stop collar ( to prevent bottoming phenomenon. Or to decide a precise operation position.)



  • KMS, KMA accessoriea
[unit : mm]

Model

Lock nut

Stop collar

Urethane cap

Rectangular flange

A

B

C

D

E

F

G

H

I

J

K

L

M08 X 1.0

4

12

20

11.5

-

-

-

-

-

-

-

-

M10 X 1.0

4

13

20

12.5

-

-

-

-

-

-

-

-

M12 X 1.0

5

14

20

13.2

-

-

-

-

-

-

-

-

M14 X 1.0

6

19

27

18

-

-

-

-

-

-

-

-

M14 X 1.5

-

-

-

-

-

-

-

-

M16 X 1.5

6

19

27

20

-

-

-

-

-

-

-

-

M20 X 1.5

8

25

36

24

-

-

-

-

-

-

-

-

M25 X 1.5

10

32

42

31.5

-

-

-

-

-

-

-

-

M25 X 2.0

-

-

-

-

-

-

-

-

M27 X 3.0

10

32

42

31.5

-

-

-

-

-

-

-

-

M36 X 1.5

10

46

62

45

21

32

51

41

29

45

7

10



  • KHA dimensions
[unit : mm]

Model

Stroke

A

B

C

D

E

F

G

H

I

J

K

KHA 42 - 25

25

198

26

22

24

24

50

13

10

12

24

19



- 50

50

248



- 75

75

298



KHA 64 - 50

50

305

36

27

38

38

74

19

19

16

38

32



-100

100

410



-150

150

535



KHA 85 - 50

50

325

36

27

38

38

98

19

19

16

38

32



- 90

90

405



-125

125

480



-165

165

575



KHA 115 - 50

50

430

50

44

56

56

124

26

26

38

57

38



-100

100

535



-150

150

635



-200

200

760



-250

250

865



[unit : mm]



Model

A

B

C

D

E

F

G

H

Bolt size

KHA 42

56

76

96

16

30

30

9

7

8





KHA 64

70

124

146

20

45

45

11

10

10

KHA 85

60

140

166

24

52

52

15

15

14

KHA 115

106

165

206

32

70

70

17

22

16



[unit : mm]

Model

Bolt size

A

B

G

C

D

E

F

G

H

I

J

K

L

M

N

O

P

KHA 42

8

60

41

9

76

60

41

60

9

13

10

56

25

45

56

8

42

25

KHA 64

10

90

70

11

-

-

70

90

11

16

13

75

45

85

75

8

62

28

KHA 85

14

104

76

15

130

102

76

104

15

19

16

98

45

85

98

10

30

30

KHA 115

16

140

111

17

-

-

111

140

17

25

22

128

70

155

128

10

104

36



  • Air / Oil tank sereis-dimensions
[unit : mm]

Model

Capacity

A

B

C

D

  KHO 20

0.2§¤

40

140

PT1/4

9

  KHO 380

0.4§¤

88

196

PT3/8

11

  KHO 2500

2.6§¤

135

360

PT3/4

17



    Application



  • Check valve series-dimensions
[unit : mm]

Model

A

B

C

KC 1/4

35

24

PT 1/4

KC 3/8

35

24

PT 3/8

KC 1/2

40

40

PT 1/2

KC 3/4

60

48

PT 3/4



1. Operating pressure : 0 ~ 10bar
2. Operating temperature : -10 ~ 80¡É




    ¡Ø Caution

  • Air/Oil tank should be installed at higher position than the shock absorber.
  • Before operating the shock absorber, remove all the air in it.
  • While checking the Air/Oil tank, don't forget to remove the pressure inside the cylinder by the check valve.
