Air Brake & ClutchAir Clutch

printing press, vessel engine, automatized machinery, large washing machine, woodworking machine and power transmission, etc

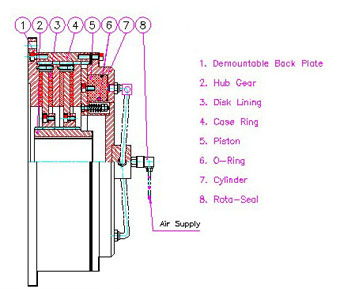

[HFC Type]

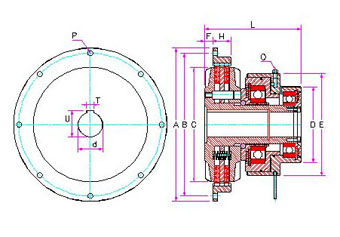

MODEL	Torques (kgf.m) Air Pressure 5.5kgf/cm2	DIMENSION												(mm)
MODEL	Torques (kgf.m) Air Pressure 5.5kgf/cm2	A	B	C	D	E	F	H	L	O	P	T	U	dH7 (max)
HFC-80-1	20	255	241	200	140	180	15	24	168	PT1/4	6-Φ8.5	12	43.3	Φ40
HFC-80-2	40	255	241	200	140	180	15	34	184	PT1/4	6-Φ8.5	12	43.3	Φ40
HFC-100-1	60	300	285	240	160	210	20	27	190	PT1/4	8-Φ8.5	12	53.8	Φ50
HFC-100-2	120	300	285	240	160	210	20	40	209	PT1/4	8-Φ8.5	12	53.8	Φ50
HFC-120-1	100	375	350	280	185	250	20	32	212	PT3/8	8-Φ12.5	18	69.4	Φ65
HFC-120-2	200	375	350	280	185	250	20	45	236	PT3/8	8-Φ12.5	18	69.4	Φ65
HFC-150-1	160	450	425	360	230	310	25	43	294	PT3/8	8-Φ17	22	85.4	Φ80
HFC-150-2	300	450	425	360	230	310	25	60	320	PT3/8	8-Φ17	22	85.4	Φ80

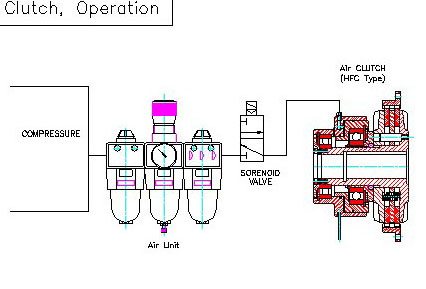

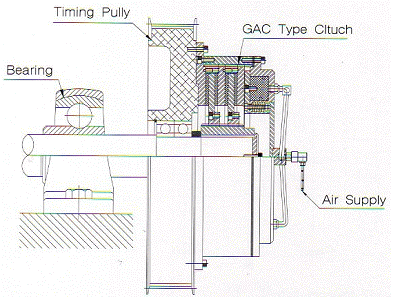

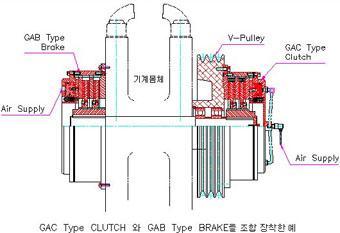

[Clutch, Operation]

large washing machine, vessel engine, cutting machine, iron plate cutting press, shaping machine, down, coiler, etc

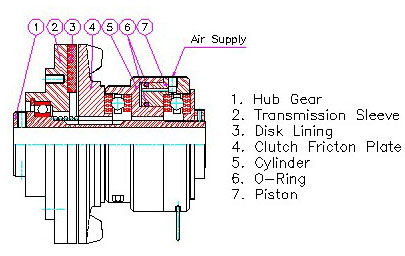

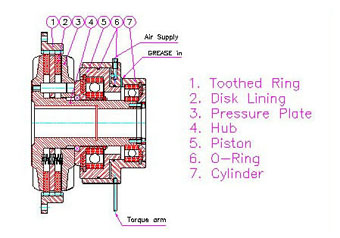

[GAC Type]

MODEL	Torques (kgf.m) Air Pressure 7kgf/cm2	DIMENSION											(mm)
MODEL	Torques (kgf.m) Air Pressure 7kgf/cm2	A	B	C	D	E	F	L	O	P	T	U	dH7 (max)
GAC-275-1	35	315	295	200	275	68	3	95	PT1/4	6-Φ13	14	53.8	Φ50
GAC-275-2	70	315	295	200	275	85	3	125	PT1/4	6-Φ13	14	53.8	Φ50
GAC-375-1	80	425	400	270	375	80	4	115	PT3/8	8-Φ13	22	85.4	Φ80
GAC-375-2	160	425	400	270	375	100	4	147	PT3/8	8-Φ13	22	85.4	Φ80
GAC-475-1	200	525	500	360	475	90	4	120	PT3/8	12-Φ15	28	110.4	Φ105
GAC-475-2	400	525	500	360	475	125	4	155	PT3/8	12-Φ15	28	110.4	Φ105
GAC-575-1	360	635	600	450	575	100	5	160	PT1/2	12-Φ17	35	141.0	Φ130
GAC-575-2	720	635	600	450	575	125	5	200	PT1/2	12-Φ17	35	141.0	Φ130
GAC-770-1	600	770	730	620	720	110	7	190	PT3/4	12-Φ22	35	171.0	Φ160
GAC-770-2	1,200	770	730	620	720	150	7	250	PT3/4	12-Φ22	35	171.0	Φ160
GAC-990-1	1,500	990	940	770	895	120	8	227	PT3/4	12-Φ25	45	191.4	Φ180
GAC-990-2	3,000	990	940	770	895	200	8	305	PT3/4	12-Φ25	45	191.4	Φ180

cutting machine, shaping machine, paper-making machine, printing press, woodworking machine, textile machinery, etc.

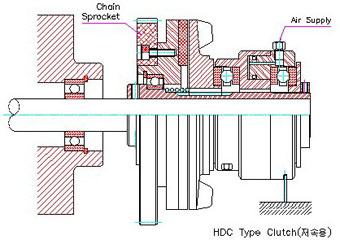

[HDC Type]

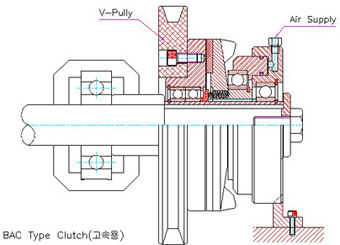

[BAC Type]

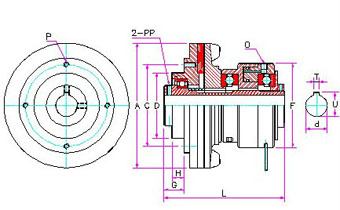

[HDC Type]

MODEL	Torques (kgf.m) Air Pressure 5.5kgf/cm2	DIMENSION												(mm)
MODEL	Torques (kgf.m) Air Pressure 5.5kgf/cm2	A	C	D	F	G	H	L	O	P	PP	T	U	dH7 (max)
HDC-02	2.5	115	80	65	89	24.5	17	120	PT1/8	4-M6	M6	6	22.3	Φ20
HDC-04	4	145	95	76	98	32	18	142	PT1/8	4-M6	M6	6	27.8	Φ25
HDC-06	10	185	125	105	136	38	22	185	PT1/8	4-M8	M8	10	38.3	Φ35
HDC-08	25	260	145	125	180	51	40	230	PT1/4	4-M10	M8	14	48.8	Φ45
HDC-10	40	280	215	180	216	63	50	260	PT1/4	6-M16	M10	18	64.4	Φ60

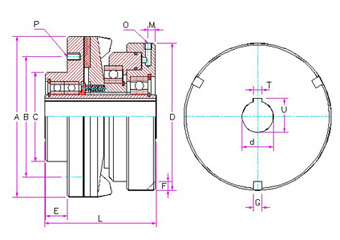

[BAC Type]

MODEL	Torques(kgf.m) Air Pressure 5.5kgf/cm2	DIMENSION													(mm)
MODEL	Torques(kgf.m) Air Pressure 5.5kgf/cm2	A	B	C	D	E	F	G	L	M	O	P	T	U	dH7 (max)
BAC-03	4	120	90	72	115	15	9	9	101	7	PT1/8	4-M6	6	22.3	Φ20
BAC-05	7	150	110	90	140	20	10	10	110	7	PT1/8	4-M6	6	27.8	Φ25
BAC-06	12	180	135	105	165	25	10	10	128	8	PT1/4	4-M8	10	38.3	Φ35
BAC-07	20	220	155	130	200	28	12	12	150	9	PT1/4	6-M12	12	44.3	Φ40
BAC-08	30	255	190	150	225	30	14	14	190	12	PT1/4	6-M16	12	54.3	Φ50
BAC-10	55	310	225	190	260	38	20	20	205	12	PT3/8	6-M16	18	69.9	Φ65
