Air Brake & ClutchWater cooling air tension brake

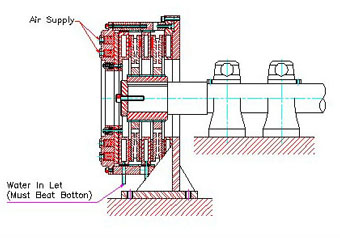

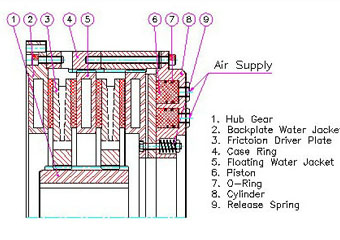

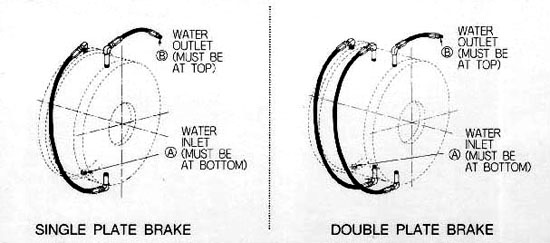

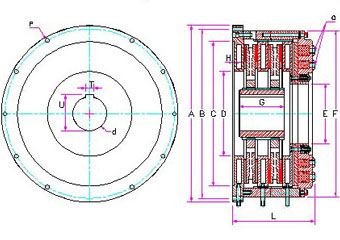

HDTW Type HDTW Type ☞ Check Point Good for dispersing heat by water-cooling system. Tension torque is proportional to air pressure and it can keep regular tension Suitable for controlling massive capacity tension. Applications printing press, iron plate cutting machine, dyeing machine, etc ☞ Examples [HDTW Type] [HDTW Type] MODEL Torques(kgf.m) Air Pre. 7kgf/cm2 DIMENSION (mm) A B C D E F G H L O P T U dH7 (max) HDTW-300-1 40 320 300 213 130 92 280 50 6 146 2-PT1/4 4-Φ13 18 64.4 Φ60 HDTW-300-2 80 320 300 213 130 92 280 120 6 210 2-PT1/4 4-Φ13 18 64.4 Φ60 HDTW-400-1 150 510 480 365 214 165 455 80 6 192 2-PT3/8 6-Φ17 24 95.4 Φ90 HDTW-400-2 300 510 480 365 214 165 455 145 6 272 2-P3/8 6-Φ17 24 95.4 Φ90 HDTW-500-1 350 610 585 464 290 190 558 90 6 197 2-PT1/2 10-Φ17 32 127.4 Φ120 HDTW-500-2 700 610 585 464 290 190 558 175 6 283 2-PT1/2 10-Φ17 32 127.4 Φ120 HDTW-700-1 800 765 730 620 355 235 740 110 6.5 237 2-PT1/2 10-Φ18 36 158.4 Φ150 HDTW-700-2 1,600 765 760 620 355 235 740 210 6.5 338 2-PT1/2 10-Φ18 36 158.4 Φ150 HDTW-900-1 1,200 940 900 770 450 320 887 120 6.5 306 3-PT3/4 10-Φ20 45 191.4 Φ180 HDTW-900-2 2,400 940 900 770 450 320 887 120 6.5 306 3-PT3/4 10-Φ20 45 191.4 Φ180 ☞Hose connection for water cooling air brake
