Home > Brake & Clutch > Magnetic Brake & Clutch

Brake & Clutch

Magnetic Brake & ClutchPower Clutch

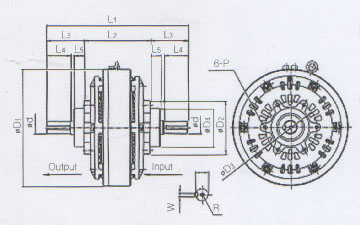

PHC-A Type TORQUE 0.3~65Kg-m PHC-A Type TORQUE 0.3~65Kg-m ☞ Dimension ☞ Examples MODEL DIMENSION (mm) L1 L2 L3 L4 L5 D1 D2 D3 D4 P R d W T PHC-0.3A₃ 154 70 42 22 14 124 75 64 42 M5 M4 10 4X4 11.5 PHC-0.6A₃ 165 73 46 26 14 138 80 64 42 M5 M5 12 4X4 13.5 PHC-1.2A₃ 192 94 49 29 15 152 80 64 42 M6 M5 15 5X5 17 PHC-2.5A₃ 230 102 64 43 17 186 94 78 55 M6 M6 20 5X5 22 PHC-5A₃ 294 112 91 55 30 219 114 100 74 M6 M8 25 7X7 28 PHC-10A₃ 362 160 101 65 28 290 160 140 100 M10 M10 30 7X7 33 PHC-20A₃ 408 190 109 69 30 335 174 150 110 M10 M10 35 10X8 38 PHC-40A₃ 499 221 139 92 35 396 230 200 130 M12 M10 45 12X8 48 ☞ Specification MODEL TOR QUE (kgf.m) voltage (DC-V) A W sec kg ㎡ g r/min W Bearing kg 入 出 PHC-0.3A₃ 0.3 24 0.53 12.7 0.08 3.00X10 8.00X10 7.5 1,000 50 6202 3.3 PHC-0.6A₃ 0.6 0.81 19.4 0.08 6.00X10 1.83X10 10 1,000 70 6202 4.1 PHC-1.2A₃ 1.2 0.94 22.5 0.1 1.34X10 4.90X0¹ 28 800 250 6003 5.8 PHC-2.5A₃ 2.5 1.24 30 0.12 3.80X10 1.49X10 50 800 380 6005/6205 10.5 PHC-5A₃ 5 2.15 51.5 0.13 9.50X10 4.80X10 80 800 700 6206 18.2 PHC-10A₃ 10 2.4 57.6 0.25 3.50X10 2.50X10 140 500 1,100 6207 39.7 PHC-20A₃ 20 2.7 64.8 0.37 9.15X10 6.89X10 225 500 1,900 6208/6308 60 PHC-40A₃ 40 3.5 84 0.4 2.41X10 2.20X10 455 500 2,800 6210/6310 120
