Air Brake & ClutchAIR CLUTCH & BRAKE UNIT

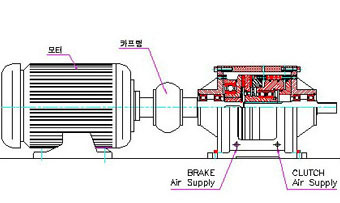

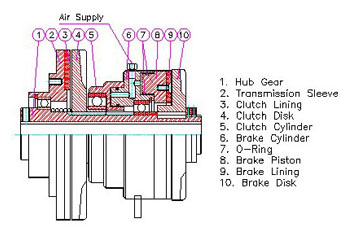

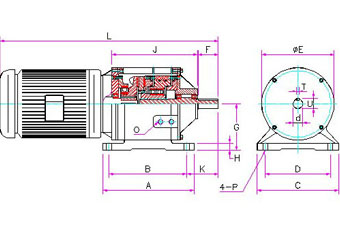

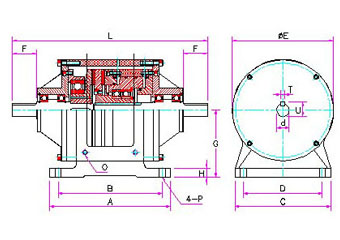

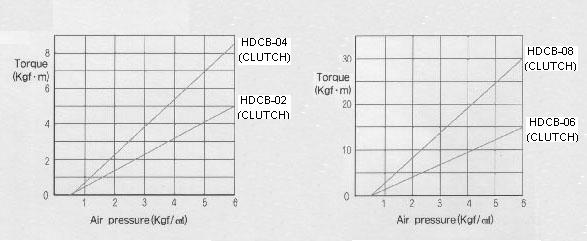

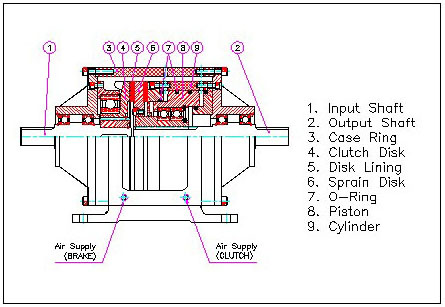

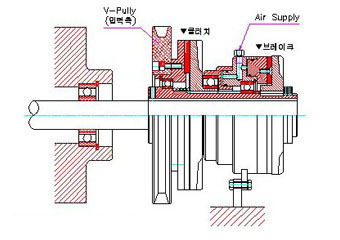

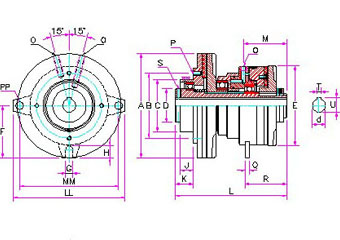

HCB Type, MHCB Type HDCB Type HCB Type, MHCB Type ☞ Check Point Rapid response and good for frequently used machine. Durable and long-lived. Applications automated machine, printing press, wood-working machine, automated welding machine, etc ☞ Examples [HCB Type] ☞Clutch Brake HCB type for Motor Coupling Connection [HCB Type] MODEL Torques(kgf.m) Air Pressure 6kgf/cm2 App. Motor (HP) DIMENSION (mm) CLUTCH BRAKE A B C D E F G H L O P T U dH7 (max) HCB-10 1.7 1.9 1/2 160 135 140 105 150 36 9 90 290 PT1/8 9 5 21.5 Φ19 HCB-20 3 3.5 1~2 185 160 175 135 180 50 14 112 350 PT1/8 11 8 27.3 Φ24 HCB-30 5.5 6 3~5 230 200 200 155 230 60 14 120 480 PT1/4 13 8 31.3 Φ28 HCB-40 12 15 7.5 300 260 280 240 290 70 17 150 480 PT1/4 15 10 41.3 Φ38 [MHCB Type] MODEL Torques(kgf.m) Air Pressure 6kgf/cm2 App. Motor (HP) DIMENSION (mm) CLUTCH BRAKE A B C D E F G H J K L O P T U dH7 (max) MHCB-10 1.7 1.9 1/2 160 135 140 105 150 30 9 90 180 75 426 PT1/8 9 5 21.5 Φ19 MHCB-20 3 3.5 1~2 185 160 175 135 180 50 14 112 204 106 570 PT1/8 11 8 27.3 Φ24 MHCB-30 5.5 6 3~5 230 200 200 155 230 60 14 120 251 123 641 PT1/4 13 8 31.3 Φ28 MHCB-40 12 15 7.5 300 260 280 240 290 80 17 150 280 150 744 PT1/4 15 10 41.3 Φ38 HDCB Type ☞ Check Point The unit of clutch&brake and suitable for low-speed. Simple assembling since it is fixed ti shaft. Accurate transmission of power and good for low-speed. Applications cutting machine, shaping machine, conveyor, print press, etc ☞ Examples [HDCB Type] Air Clutch & Brake HDCB type [HDCB Type] MODEL Torques(kgf.m) Air Pressure 5kgf/cm2 DIMENSION (mm) CLUTCH BRAKE A B C D E F G H J K L M HDCB-02 4 5 120 86 76 52 117 76 10 17 17 25.5 160 60 HDCB-04 7 5 152 95 76 47 117 76 10 17 18 25.5 160 60 HDCB-06 12 8 210 125 105 69 155 103 16 25 22 29 200 75 HDCB-08 25 20 260 145 125 82 200 127 20 24 40 51 263 84 MODEL Torques(kgf.m) Air Pressure 5kgf/cm DIMENSION (mm) CLUTCH BRAKE LL MM O P PP Q R S T U dH7(max) HDCB-02 4 5 164 145 PT1/8 M6 11 11 59.5 M6 5 22.3 Φ20 HDCB-04 7 5 164 145 PT1/8 M6 11 11 59.5 M6 6 22.3 Φ25 HDCB-06 12 8 208 188 PT1/8 M8 11 13 75 M6 10 38.3 Φ35 HDCB-08 25 20 280 254 PT1/8 M10 13 13 89 M8 10 48.3 Φ45 ☞ The relationship between air pressure and torque
