Air Brake & ClutchAir Tension Brake

Suitable for controlling low-speed tension.
Ideal for delicate and regular tension control by using proportional air pressure control.
Attached to high power motor and used for braking at any place.

paper, film, printing press, paper-making machine, motor brake, etc

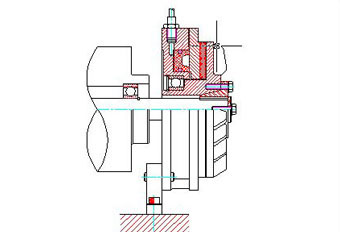

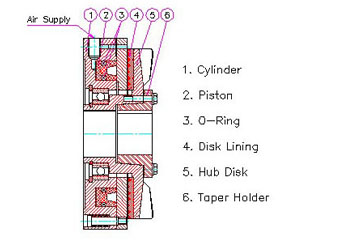

[HDB Type]

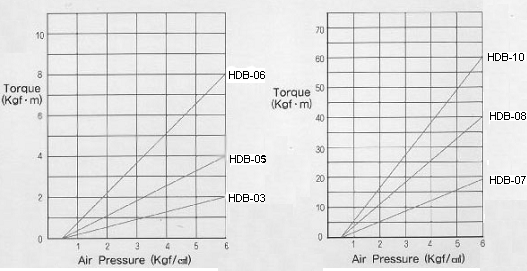

MODEL	Torques (kgf.m) Air Pressure 0~6 kgf/cm2	App.Motor (HP)	DIMENSION															(mm)

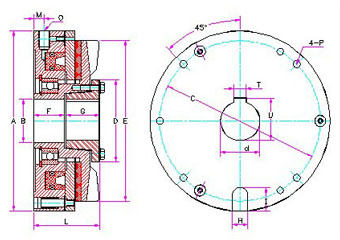

MODEL	Torques (kgf.m) Air Pressure 0~6 kgf/cm2	App.Motor (HP)	A	B	C	D	E	F	G	H	I	L	M	O	P	T	U	dH7 (max)
HDB-03	0~2	1/2~1	120	17	105	52	90	32	21	10	15	55	9	PT 1/4	5.5	5	17.3	Φ15
HDB-05	0~4	2	150	27	135	58	120	38.5	24	10	16	66.5	12	PT 1/4	7	6	27.8	Φ25
HDB-06	0~8	3~5	180	38	165	79	156	44	32	16	25	79	12	PT 1/4	9	10	38.3	Φ35
HDB-07	0~18	7.5~10	230	56	205	108	205	39.5	42	20	30	86.5	12	PT 1/4	9	16	54.3	Φ50
HDB-08	0~40	20~30	302	65	270	145	256	38.5	58	22	33	101.5	12	PT 3/8	14	18	64.4	Φ60
HDB-10	0~60	40~50	352	75	320	145	285	49	58	30	37.5	111	14	PT 1/2	19	20	74.9	Φ70

8232-822-7974

822-6306-4432
