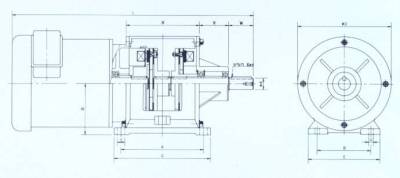

Magnetic Brake & ClutchMotor Direct Connection Clutch Brake Unit

MODEL	HP	TORQUE(Kgf.m)		DCV	DIMENSION
MODEL	HP	CLUTCH	BRAKE	DCV	A	B	C	D	E	H	L	M	U	V	b	d	h	i
HMCBM -0.4	0.4	1	1.1	DC 24V	110	80	130	125	110	80	400	30	15	9	5	14	53	30
HMCBM -0.75	0.75	2	2		135	105	160	150	140	90	500	40	20	11	5	19	5	35
HMCBM -1.5	1.5	4	4		160	135	190	190	175	112	550	50	24	11	7	24	7	40
HMCBM -2.2	2.2	7	8		200	155	230	230	200	132	630	50	24	14	7	24	7	40
HMCBM -3.7	3.7	12	1		200	155	230	230	200	132	658	60	28	14	7	28	7	50
HMCBM -5.5	5.5	18	20		230	220	275	275	275	285	750	70	14	141	10	35	10	60
