Home > Brake & Clutch > Air Brake & Clutch
Brake & Clutch
Air Brake & ClutchAir Brake Motor
HDMB Type

    HDMB Type



    ☞ Check Point

  1. Able to control motor at the required place.
  2. Braking power can be adjusted freely by air pressure.
  3. No worry about the fire caused by coil damage. Durable and simply repair.
  4. Air brake is attached to motor or geared motor.

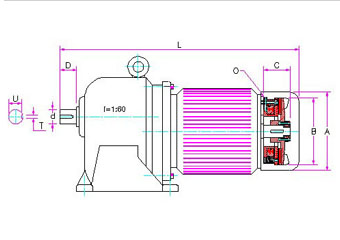

[HDMB Type]
MODEL Pressure (kgf/cm2) App. Motor DIMENSION (mm)
A B C D L O T U dH6(max)
HDMB-03 0~2 1/2HP 148 110 51.5 30 476 PT1/8 8 24 Φ28
HDMB-05 0~4 1HP 180 120 55.5 40 480 PT1/8 10 27 Φ32
HDMB-06 0~8 2HP 199 135 55.5 50 530 PT1/8 12 33 Φ38
HDMB-07 0~18 3HP 220 150 70.5 60 670 PT1/4 12 33 Φ38
HDMB-08 0~40 5HP 244 170 70.5 60 680 PT1/4 16 49 Φ55
