Home > Brake & Clutch > Magnetic Brake & Clutch

Brake & Clutch

Magnetic Brake & ClutchMulti-disk Magnetic Clutch

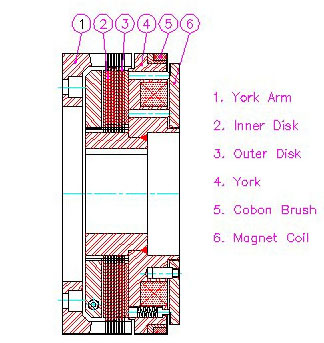

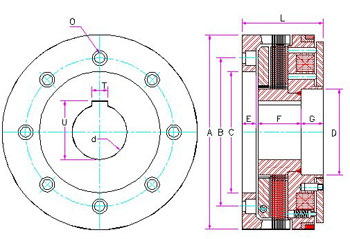

HDSC Type HDSC Type ☞ Check Point Able to use with oil or without oil. There is no residual magnetism at all since torque is generated by torque pin. Suitable for low speed, high speed, change of speed and rapid operation. Applications machine tool, transporting machine, combine tractor, construction equipment, clutch for special vehicles industrial machine, etc [HDSC Type] MODEL Torques (kgf.m) DIMENSION (mm) A B C D E F G L O T U dH7 (max) HDSC-40 40 195 145 119 90 15 43 25 85 6-Φ10.5 18 64.4 Φ60 HDSC-100 100 249 190 155 110 18 55 28.5 104 8-Φ13 20 74.9 Φ70 HDSC-200 200 295 210 160 125 20 66 42 131 8-Φ17 22 85.4 Φ80
