Air Brake & ClutchCombination Air Clutch Brake
HACB Type, HACB-H Type Selection Calculation for selection

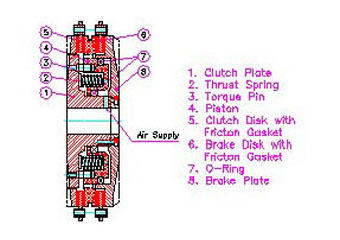

    HACB Type, HACB-H Type



    ☞ Check Point

  1. Rapid response and precise connection & braking.
  2. Friction disk can be replaced without disassembling the clutch.
  1. Applications

shaping machine cutting machine, textile machine, wood-working machine, various automatized machinery, etc

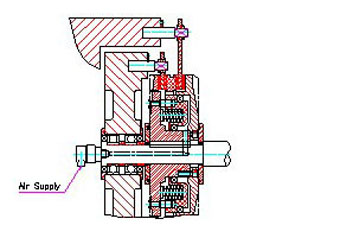

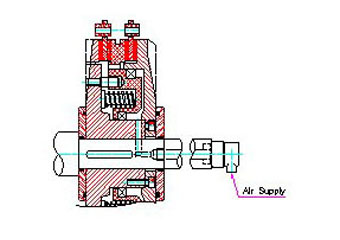

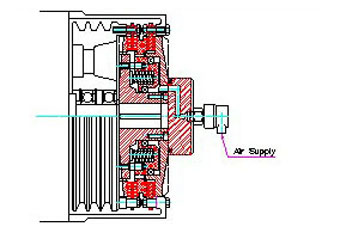

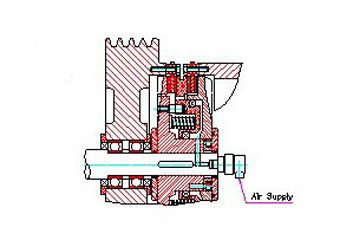

    ☞ Examples

[HACB Type]

[HACB Type]

[HACB Type]

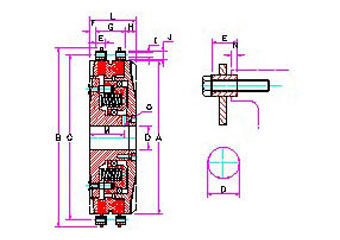

MODEL Torques(kgf.m)
Air Pressure 5kgf/cm2		 DIMENSION (mm)
CLUTCH BRAKE A B C D E F G H I J L M N O dH7 (max)
HACB-190 23 17 190 215 205 36 12 8 36 14 5.5 10 58 40 2 5 Φ35
HACB-235 55 35 235 275 255 47 14 13 40 13 605 12 66 44 3 7 Φ45
HACB-305 100 70 305 352 325 56 21 11 58 14 8.5 15 83 56 3 10 Φ55
HACB-380 200 170 380 436 408 76 25 16 69 15 11 18 100 72 3 14 Φ75
HACB-465 400 300 465 535 500 91 26 25 72 28 12.5 21 125 88 4 15 Φ90
HACB-500 500 350 500 570 536 101 32 28 90 22 14.5 25 140 98 4 18 Φ100
HACB-600 900 700 600 680 640 126 38 29 103 23 16.5 30 155 113 4 18 Φ125
HACB-750 1,500 1,200 750 865 810 161 38 45 119 39 24.5 41 203 145 5 23 Φ160

    ☞ Examples

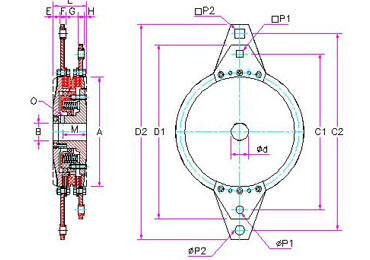

[HACB-H Type]
MODEL Torques (kgf.m) Air Pressure 5kgf/cm2 DIMENSION (mm)
CLUTCH BRAKE A B C1 C2 D1 D2 E F G H L M O P1 P2 dH7 (max)
HACB-190-H 23 17 190 36 262 340 300 386 10 13 17.5 4.5 58 40 5 16 16 Φ35
HACB-235-H 55 35 235 47 326 456 352 510 9.5 14 19 9.5 66 44 7 22 16 Φ45
HACB-305-H 100 70 305 56 414 560 468 605 11 19 22 12 83 56 10 22 16 Φ55
HACB-380-H 200 170 380 76 500 650 555 705 16 19 38 8 100 72 14 30 22 Φ75
HACB-465-H 400 300 465 91 605 745 670 810 17 23 39 23 125 88 15 30 30 Φ90
HACB-500-H 500 350 500 101 655 835 735 915 21 26 42 25 140 98 18 40 30 Φ100
HACB-600-H 900 700 600 126 784 1,000 895 1095 16 36 51 16 155 133 18 45 32 Φ125
HACB-750-H 1,500 1,200 750 161 1,000 1,320 1,130 1,444 26 37 74 29 203 150 23 55 45 Φ160

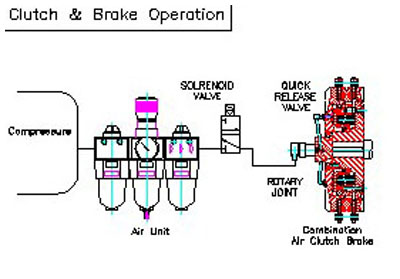

    ☞Clutch & Brake Operation

    Selection



    Typical clutches and brakes are used for pressing and they have to be chosen considering these factors below.
  1. Torque of clutch.
  2. required torque for machine stopping.
  3. Heat generation rate during cycling.
  4. Dimension of shaft.
  5. The speed of crank shaft.
  6. Angle of crank at machine stopping.
    For choosing thin air clutch and brake, fundamental information below is needed.

    ☞Reference Data

  • Normal load ------------------------- 20ton
  • Starting crank angle ------------------- 90°
  • Distance from off button --------------- 0.00635m
  • 1/2 of Stroking distance --------------- 0.076m
  • Stroke ----------------------------- 0.15m
  • Shaft speed(RPM) of Clutch and brake ---- 204RPM
  • Crank angle at stopping --------------- 120°
  • Length air pressure ------------------- 0.9m
  • Required air pressure ----------------- 6kgf/㎠
  • Shaft dimension ---------------------- ø115

    Calculation for selection


    1. Torque Crank

    = RATED LOAD × 900Kg.㎡ / Ton × (Torque Arm)

    2. Torque Arm = y = (C) × (tan α)

    C = a + b - x

         = 0.076 + 0.9 - 0.00635

         = 0.97m

    Cos α =

         =

         = 0.9931

         = 1.8348°

    3. Torque Arm = y = (C) × (tan α)

         = 0.97 × (tan α)

         = 0.97 × 0.03224

         = 0.0313m

    4. Torque Crank = 200 × 900 × 0.0313

         = 5.634kgf.m

    • Required = T

         =

         =

         = 829kgf.m

  • Required torque is 829kgf.m and with safety ratio(k) 1.3, you will get 829 × 1.3 = 1077kgf.m. therefore, HACB-600 will be chosen.
  • 829 × 1.3 = 1077kgf.m
