Magnetic Brake & ClutchSafety Magnetic Brake (B-type)

MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION

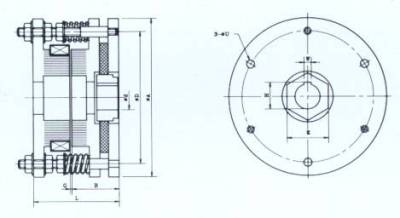

MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	A	D	D0	D1	D2	E	F	H	L	U	W	d
HMBB-20	1/2-1	1.5	90/180	145	26	108	75	125	41	145	23.5	90	4	5	20
HMBB-40	2-3	3		192	35	135	100	165	46	178	28.5	140	6	7	25
HMBB-70	5-7.5	5		230	50	170	110	190	50	215	31.5	155	6	7	28
HMBB-120	10-15	10		260	54	200	118	220	50	240	33.5	170	8	10	32
HMBB-200	20-25	20		290	290	60	220	135	250	70	270	45	178	9	12
HMBB-400	30-40	40		325	70	250	150	280	80	305	55	180	12	12	50

MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION
MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	A	D	E	G	H	L	U	W	d
HMBBA-05	1/2-1	0.5	220/380	105	94	38	0.4	15	70	3	4	13
HMBBA-10	2	1		142	123	41	0.4	17.5	90	3	5	15
HMBBA-20	3	2		142	123	41	0.5	21.5	105	3	7	18
HMBBA-40	5	4		190	163	46	0.6	25.5	100	4	7	22
HMBBA-70	7.5	6		215	190	46	0.7	28.5	120	4	7	25
HMBBA-120	10	8		250	225	50	0.8	35.5	135	4	7	32
