Brake & Clutch

Air Brake & ClutchSafety Air Brake

HABB Type, HDBB Type

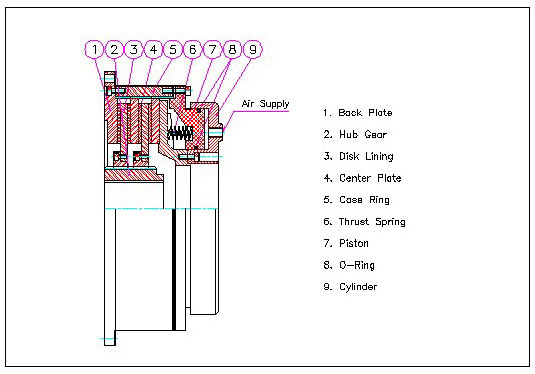

☞ Check Point

1.If air is intercepted, it stops by braking springs. If air is supplied it is released.
2.Suitable for sudden braking and safety accident control.
3.HDBB for small-size motor, HABB for large-size motor, Also good for brake motor

Applications

elevator, printing press, crusher, diverse safe machines, food machine, etc

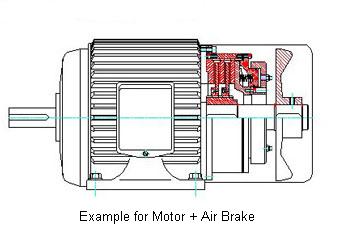

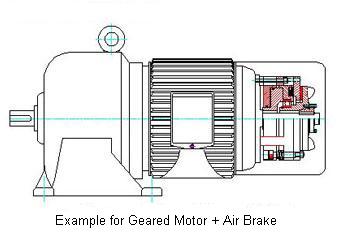

☞ Examples

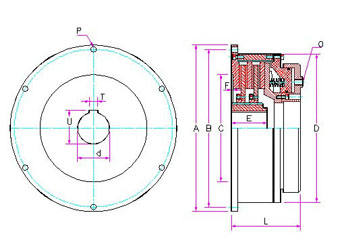

[HDBB Type]

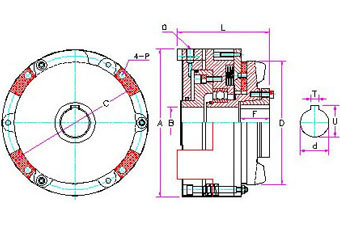

[HABB Type]

MODEL	Torques (kgf.m)	Min. Release Pr. (kgf/cm2)	DIMENSION											(mm)
MODEL	Torques (kgf.m)	Min. Release Pr. (kgf/cm2)	A	B	C	D	E	F	L	O	P	T	U	dH7 (max)
HABB-275-1	25	4	315	295	210	275	55	3	120	PT1/4	6-Φ11	14	53.8	Φ50
HABB-275-2	50	4	315	295	210	275	80	3	145	PT1/4	6-Φ11	14	53.8	Φ50
HABB-375-1	60	4	420	400	270	375	60	4	145	PT3/8	8-Φ13	22	85.4	Φ80
HABB-375-2	120	4	420	400	270	375	90	4	1275	PT3/8	8-Φ13	22	85.4	Φ80
HABB-475-1	150	4	525	495	380	475	85	4	165	PT3/8	12-Φ15	28	110.4	Φ105
HABB-475-2	300	4	525	495	380	475	135	4	215	PT3/8	12-Φ15	28	110.4	Φ105
HABB-575-1	350	4.5	635	600	450	575	120	5	185	PT1/2	12-Φ17	35	141.0	Φ130
HABB-575-2	700	4.5	635	600	450	575	145	5	225	PT1/2	12-Φ17	35	141.0	Φ130
HABB-770-1	800	5	840	800	650	760	170	6	240	PT1/2	12-Φ22	45	170.4	Φ160
HABB-770-2	1,600	5	840	800	650	760	240	6	305	PT1/2	12-Φ22	45	170.4	Φ160

[HDBB Type]

MODEL	Torques (kgf.m)	Min. Release Pr. (kgf/㎠)	App.Motor(HP)	DIMENSION										(mm)
MODEL	Torques (kgf.m)	Min. Release Pr. (kgf/㎠)	App.Motor(HP)	A	B	C	D	F	L	O	P	T	U	dH7 (max)
HDBB-03	2	3.5	1/2~1	120	23	105	100	22	81	PT1/8	5.5	6	22.3	Φ20
HDBB-05	3.5	3.5	2	150	26	130	120	26	97.5	PT1/8	7	8	27.8	Φ25
HDBB-06	7	4	3~5	182	38	165	153	34	111.5	PT1/4	9	12	38.3	Φ35
HDBB-07	12	5	7.5~10	230	53	210	205	42	121	PT1/4	11	14	53.8	Φ50
HDBB-08	28	5	20~30	300	78	270	256	50	154	PT3/8	15	22	80.4	Φ75
