Magnetic Brake & ClutchTooth Clutch

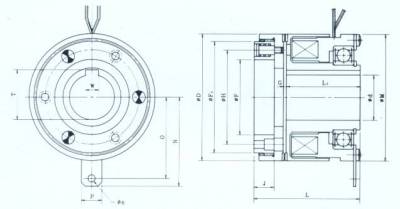

MODEL	TOR QUE (Kgf.m)	DCV	DIMENSION
MODEL	TOR QUE (Kgf.m)	DCV	D	E	F	F1	G	H	J	L	L1	M	N	O	P	T	W	d
TCH -0.4	4	24	76	38.1	42	64	1.4	53	11	66	47	76	76	54	16	28	7	25
TCH -0.7	7		84 /85.9	38.1 /40	42 /50	68.5 /73	1.5 /1.7	53 /62.5	11 /12.7	70 /74	47 /53.5	85 /85.9	60 /64	54 /58	16	28 /33	7	25 /30
TCH -10	10		98.5	45	58	85	2.3	73	16	82	57	98	69	63	16	39	10	35
TCH -25	25		117.5	59	70	104	2.3	86.9	20	90	60	110	74	68	16	44.5	12	40
TCH -40	40		140	65	85	120	2.3	101	23	110	75	133	79	73	16	56	15	50
