Air Brake & ClutchAir Brake

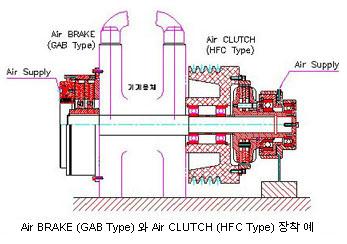

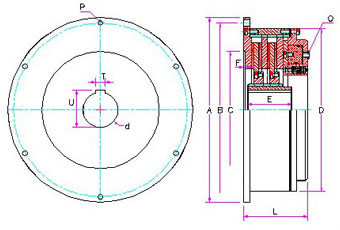

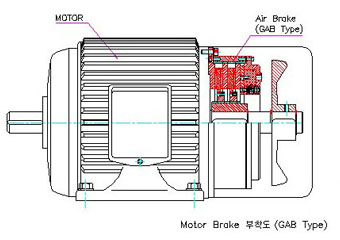

GAB Type GAB Type ☞ Check Point Good for controlling low-speed tension by adjusting air pressure. Attached to high power motor and used for braking at any place. Applications printing press, down coiler, crusher, dyeing machine, paper-making machine etc ☞ Examples [GAB Type] [GAB Type] MODEL Torques (kgf.m) Air Pressure 7kgf/cm2 DIMENSION (mm) A B C D E F L O P T U dH7(max) GAB-275-1 35 315 295 200 275 68 3 95 PT1/4 6-Φ13 14 53.8 Φ50 GAB-275-2 70 315 295 200 275 85 3 125 PT1/4 6-Φ13 14 53.8 Φ50 GAB-375-1 80 425 400 270 375 80 4 115 PT3/8 8-Φ13 22 85.4 Φ80 GAB-375-2 160 425 400 270 375 100 4 147 PT3/8 8-Φ13 22 85.4 Φ80 GAB-475-1 200 525 500 360 475 90 4 120 PT3/8 12-Φ15 28 110.4 Φ105 GAB-475-2 400 525 500 360 475 125 4 155 PT3/8 12-Φ15 28 110.4 Φ105 GAB-575-1 360 635 600 450 575 100 5 160 PT1/2 12-Φ17 35 141.0 Φ130 GAB-575-2 720 635 600 450 575 125 5 200 PT1/2 12-Φ17 35 141.0 Φ130 GAB-770-1 600 770 730 620 720 110 7 190 PT3/4 12-Φ22 35 171.0 Φ160 GAB-770-2 1,200 770 730 620 720 150 7 250 PT3/4 12-Φ22 35 171.0 Φ160 GAB-990-1 1,500 990 940 770 895 120 8 227 PT3/4 12-Φ25 45 191.4 Φ180 GAB-990-2 3,000 990 940 770 895 200 8 305 PT3/4 12-Φ25 45 191.4 Φ180 ☞ Examples
