Air Brake & ClutchAir Tooth-type Clutch

Tooth Clutch transmits power accurately without slippage since each tooth fits exactly one another.
Easily installed in narrow space since it can transmit high torque even in small shape.

tire shaping machine, medical appliances, food machine, printing press, crusher, etc

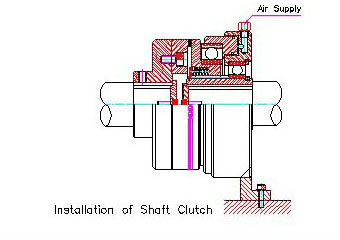

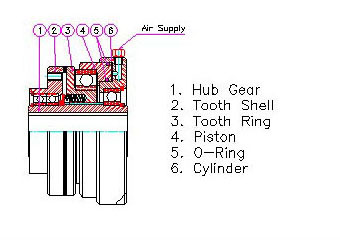

[HTC Type]

[BTC Type]

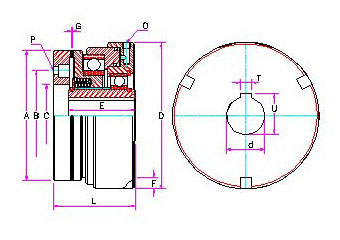

[HTC Type]

MODEL	Torques (kgf.m) Air Pressure 4kgf/cm2	DIMENSION												(mm)
MODEL	Torques (kgf.m) Air Pressure 4kgf/cm2	A	B	C	D	E	F	G	L	O	P	T	U	dH7 (max)
HTC-10	10	80	55	42	85	50	10	0.5	62	PT1/8	4-Φ6.5	6	22.8	Φ20
HTC-20	20	110	65	50	115	53	10	0.5	70	PT1/8	4-Φ6.5	8	28.3	Φ25
HTC-40	40	125	85	55	135	62	10	0.7	77	PT1/8	4-Φ8.5	10	33.3	Φ30
HTC-60	60	137	95	66	155	70	12	0.7	86	PT1/8	6-Φ10.5	12	43.3	Φ40
HTC-80	80	155	120	85	170	85	12	1.0	95	PT1/4	6-Φ10.5	16	54.3	Φ50
HTC-120	120	178	130	90	195	80	12	1.0	100	PT1/4	6-Φ12.5	18	64.4	Φ60
HTC-200	200	212	140	105	232	95	14	1.2	117	PT3/8	6-Φ17	22	85.4	Φ80
HTC-300	300	242	170	132	265	110	14	1.2	130	PT3/8	8-Φ17	25	96.4	Φ90
HTC-400	400	280	200	150	300	115	16	1.5	145	PT1/2	8-Φ19	28	116.4	Φ110

[BTC Type]

MODEL	Torques(kgf.m) Air Pressure 4kgf/cm2	DIMENSION												(mm)
MODEL	Torques(kgf.m) Air Pressure 4kgf/cm2	A	B	C	D	E	F	G	L	O	P	T	U	dH7 (max)
BTC-10	10	85	75	62	85	13	10	0.5	67	PT1/8	4-M6	6	22.8	Φ20
BTC-20	20	110	90	75	115	18	10	0.5	80	PT1/8	4-M6	8	28.3	Φ25
BTC-40	40	125	100	80	135	18	10	0.7	95	PT1/8	4-M8	10	33.3	Φ30
BTC-60	60	137	115	90	155	20	12	0.7	105	PT1/8	6-M10	12	43.3	Φ40
BTC-80	80	155	130	110	170	23	12	1.0	125	PT1/4	6-M10	16	54.3	Φ50
BTC-120	120	178	150	130	195	23	12	1.0	125	PT1/4	6-M12	18	64.4	Φ60
BTC-200	200	212	180	155	232	30	14	1.2	145	PT3/8	6-M16	22	85.4	Φ80
BTC-300	300	242	205	180	265	35	14	1.2	185	PT3/8	8-M16	25	96.4	Φ90
BTC-400	400	280	240	210	300	40	16	1.5	190	PT1/2	8-M18	28	116.4	Φ110
