Magnetic Brake & ClutchPower Brake

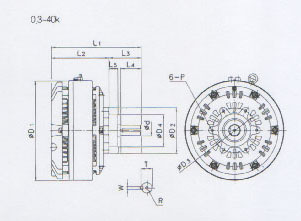

PHB-Y Type TORQUE 0.3~65Kg-m PHB-Y Type TORQUE 0.3~65Kg-m ☞ Dimension ☞ Examples MODEL DIMENSION (mm) L1 L2 L3 L4 L5 D1 D2 D3 D4 P R d W T PHB-0.3Y₃ 111 69 42 22 14 124 75 64 42 M5 M4 10 4X4 11.5 PHB-0.6Y₃ 119 73 46 26 14 138 80 64 42 M5 M5 12 4X4 13.5 PHB-1.2Y₃ 137.5 88.5 49 29 15 152 80 64 42 M6 M5 15 5X5 17 PHB-2.5Y₃ 167.5 103.5 64 43 17 186 94 78 55 M6 M6 20 5X5 22 PHB-5Y₃ 210 119 91 55 30 219 114 100 74 M6 M8 25 7X7 28 PHB-10Y₃ 260 159 101 65 28 290 160 140 100 M10 M10 30 7X7 33 PHB-20Y₃ 302 193 109 69 30 335 174 150 110 M10 M10 35 10X8 38 PHB-40Y₃ 366 227 139 92 35 396 230 200 130 M12 M10 45 12X8 48 ☞ Specification MODEL TORQUE (kgf.m) DC-V A W sec kg ㎡ g r/min W bearing kg PHB-0.3Y₃ 0.3 24 0.53 12.7 0.08 3.00X10 7.5 1,000 50 6202 3.1 PHB-0.6Y₃ 0.6 0.81 19.4 0.08 6.00X10 10 1,000 70 6202 4.0 PHB-1.2Y₃ 1.2 0.94 22.5 0.1 1.34X10 28 800 250 6003 5.6 PHB-2.5Y₃ 2.5 1.24 30 0.12 3.80X10 50 800 380 6005/6205 10.2 PHB-5Y₃ 5 2.15 51.5 0.13 9.50X10 80 800 700 6206 16.6 PHB-10Y₃ 10 2.4 57.6 0.25 3.50X10 140 500 1,100 6207 34.2 PHB-20Y₃ 20 2.7 64.8 0.37 9.15X10 225 500 1,900 6208/6308 50 PHB-40Y₃ 40 3.5 84 0.4 2.41X10 455 500 2,800 6210/6310 107
