Magnetic Brake & ClutchDry Single-disk Magnetic Brake (A-type)

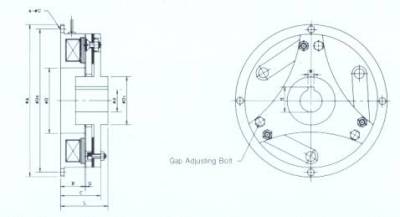

MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION
MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	A	B	D	D0	D1	G	H	L	U	W	d
HMB-05	1/4	0.5	24	80	18	35	72	30	0.2	13	38	5	4	11
HMB-10	1/2	1		100	21	42	90	40	0.3	16.5	48	6	5	14
HMB-20	1-2	2		125	25	52	112	50	0.3	20.5	55	6	5	18
HMB-40	3	4		150	26	62	137	55	0.3	25.5	63	7	7	22
HMB-70	5	7		182	28	80	167	60	0.4	28.5	70	7	7	25
HMB-120	7.5-10	12		210	33	100	194	65	0.5	33.5	75	7	7	30
HMB-200	15~20	20		250	35	115	200	75	0.6	44	85	10	10	40

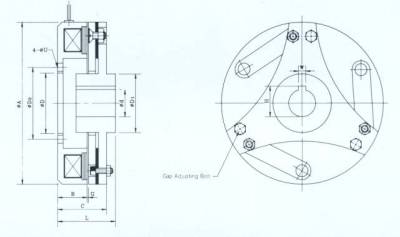

MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION
MODEL	HP	TORQUE (Kgf.m)	Voltage (DCV)	A	B	D	D0	D1	G	H	L	U	W	d
HMBA-20	1/2-1	2	24	110	23	30	41	35	0.3	17	40	5	4	M15
HMBA-40	2	4		127	25	35	45	40	0.3	20.5	45	6	5	18
HMBA-60	3	6		150	26	40	52	45	0.3	25.5	50	7	7	22
HMBA-70	5	8		160	28	45	62	50	0.4	28.5	60	7	7	25
HMBA-120	7.5-10	12		181	32	50	80	55	0.5	33.5	70	9	7	30
HMBA-200	15	20		215	37	75	105	65	0.5	44	80	9	10	40
HMBA-300	20-25	30		255	38	90	120	75	0.5	54	90	11	10	50
HMBA-400	30-40	40		272	43	105	130	90	0.6	60	100	13	12	55
