Magnetic Brake & ClutchDry Single-disk Magnetic Clutch

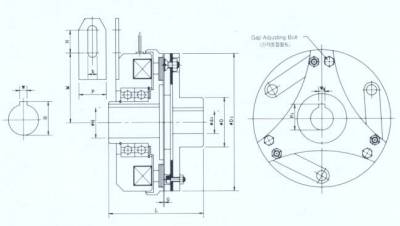

MODEL	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION
MODEL	TORQUE (Kgf.m)	Voltage (DCV)	D	D1	G	H	H1	L	N	P	W	W1	b	d	d1
HMCR-05	0.5	24	30	63	0.2	14	14	45	10	8	4	4	4	12	12
HMCR-10	1		40	80	0.3	20.5	20.5	55	15	10	5	5	18	18	18
HMCR-20	2		50	100	0.3	22.5	22.5	65	17	10	5	5	5	20	20
HMCR-40	4		55	127	0.3	28.5	28.5	75	20	12	7	7	6	25	25
HMCR-70	7		60	152	0.4	33.5	33.5	85	25	14	7	7	7	30	30
HMCR-120	12		65	182	0.5	35.5	33.5	95	30	18	7	9	9	32	32
HMCR-200	20		75	216	0.6	39	39	105	35	22	10	11	11	35	35

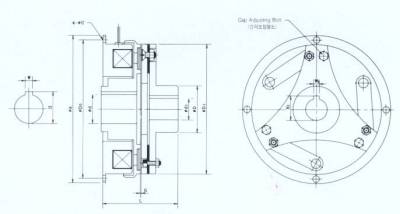

MODEL	TORQUE (Kgf.m)	Voltage (DCV)	DIMENSION
MODEL	TORQUE (Kgf.m)	Voltage (DCV)	A	D	D0	D1	G	H	H1	L	U	W	W1	d	d1
HMCF-05	0.5	24	80	35	72	63	0.2	14	14	45	5	4	4	12	12
HMCF-10	1		100	42	90	80	0.3	20.5	20.5	55	6	5	5	18	18
HMCF-20	2		125	52	112	100	0.3	22.5	22.5	65	6	5	5	20	20
HMCF-40	4		150	62	137	125	0.3	28.5	8.5	75	7	7	7	25	25
HMCF-70	7		182	80	167	152	0.4	33.5	33.5	85	9	7	7	30	30
HMCF-120	12		210	100	194	182	0.5	35.5	35.5	95	9	7	7	32	32
HMCF-200	20		250	115	200	216	0.6	39	39	105	11	10	10	35	35
